A/T Reverse Relay Connector End View

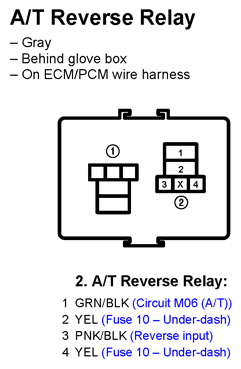

Fig 1: A/T Reverse Relay Connector End View

G11249947

Courtesy of AMERICAN HONDA MOTOR CO., INC.
