LEMON Manuals
: Even more car manuals for everyone
Home
>>
Honda
>>
2004
>>
Element DX, 2.4 YH2, Automatic
>>
Repair and Diagnosis
>>
Accessories & Equipment
>>
Cruise Control Systems
>>
Circuit Diagram
Circuit Diagram

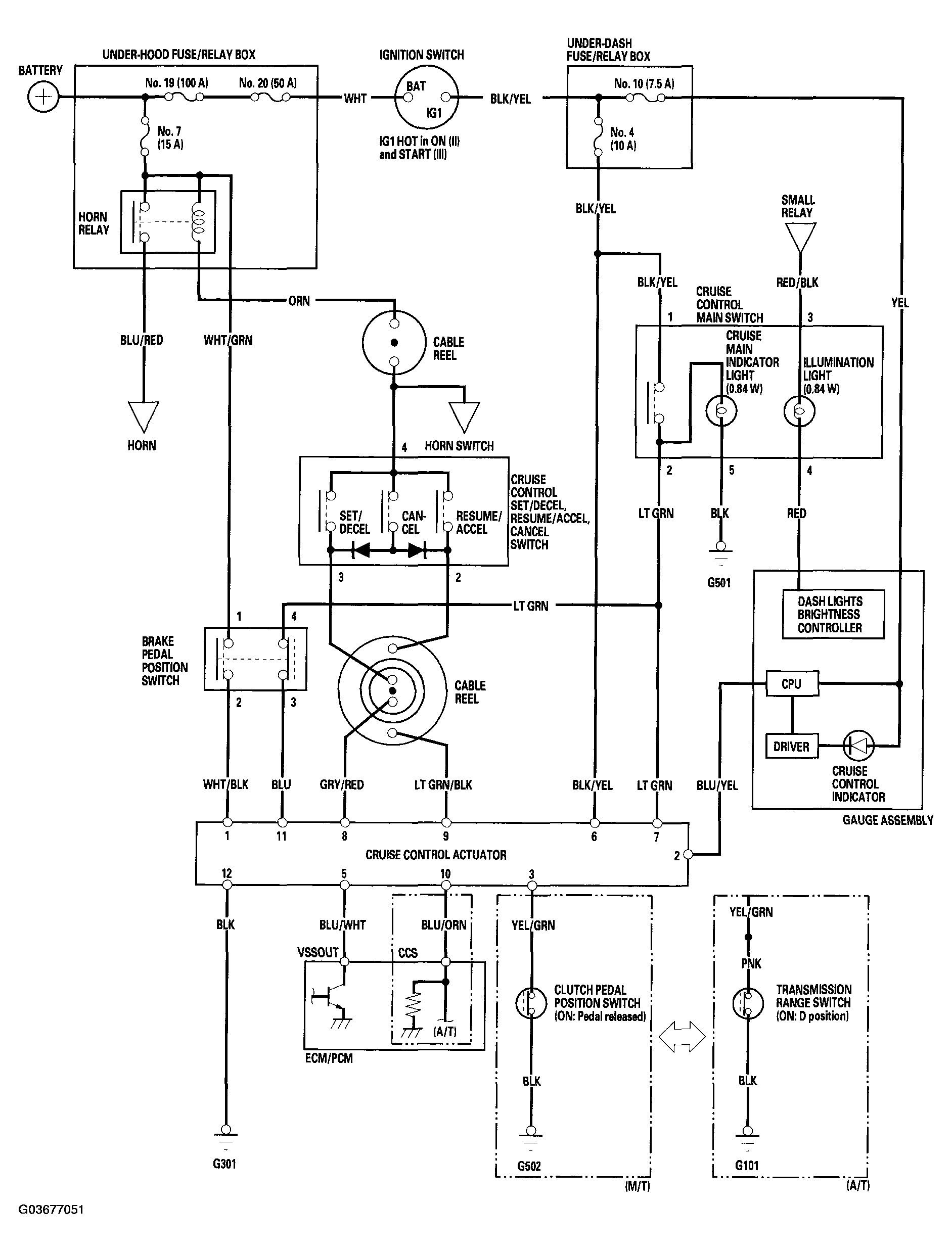

Fig 1: Circuit Diagram Cruise Control
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
