Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

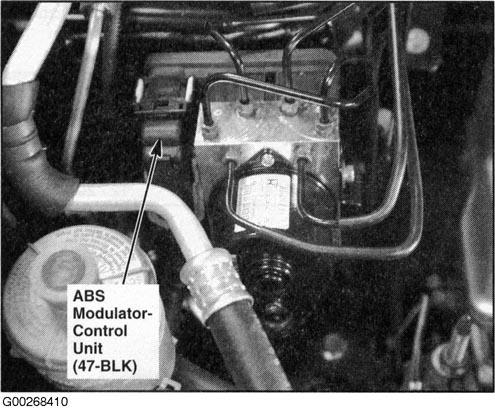

Fig 1: Right Side Of Engine Compartment (EX)

G00268410

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 2: Right Side Of Engine Compartment

G00268411

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 3: Right Side Of Engine Compartment

G00268412

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 4: Front Of Engine Compartment

G00268413

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 5: Front Of Engine Compartment

G00268414

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 6: Left Side Of Engine Compartment

G00268415

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 7: Left Side Of Engine Compartment

G00268416

Courtesy of AMERICAN HONDA MOTOR CO., INC.

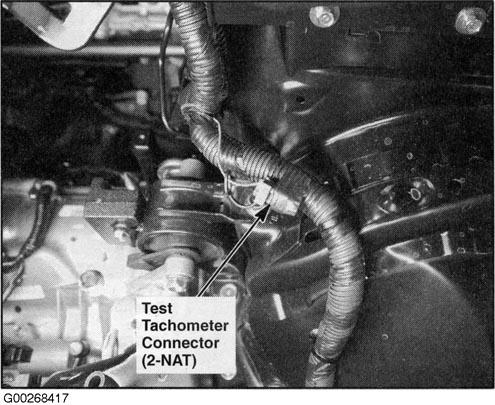

Fig 8: Left Side Of Engine Compartment

G00268417

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 9: Right Side Of Engine

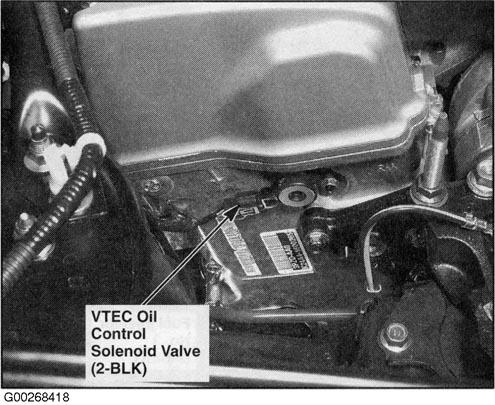

G00268418

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 10: Right Side Of Engine

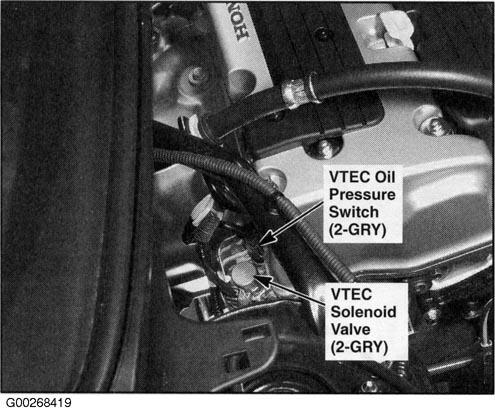

G00268419

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 11: Middle Of Engine

G00268420

Courtesy of AMERICAN HONDA MOTOR CO., INC.

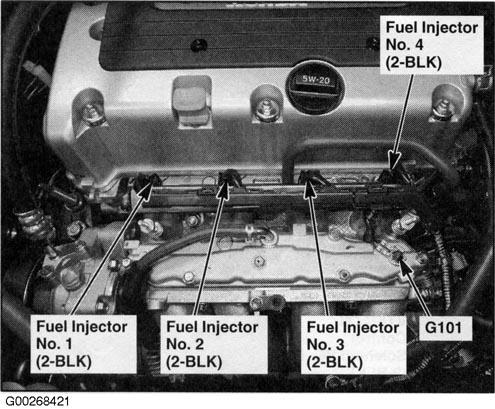

Fig 12: Middle Of Engine

G00268421

Courtesy of AMERICAN HONDA MOTOR CO., INC.

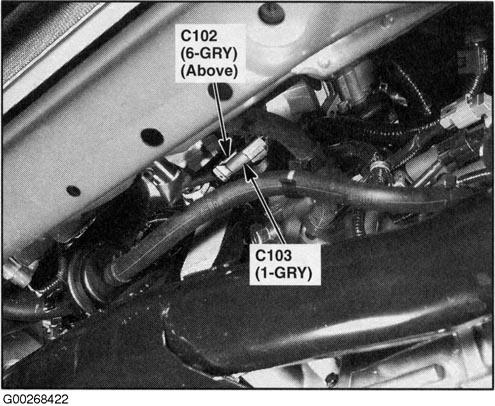

Fig 13: Middle Of Engine Compartment

G00268422

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 14: Front Of Engine (Intake Removed)

G00268423

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 15: Right Side Of Engine Compartment (Intake Removed)

G00268424

Courtesy of AMERICAN HONDA MOTOR CO., INC.

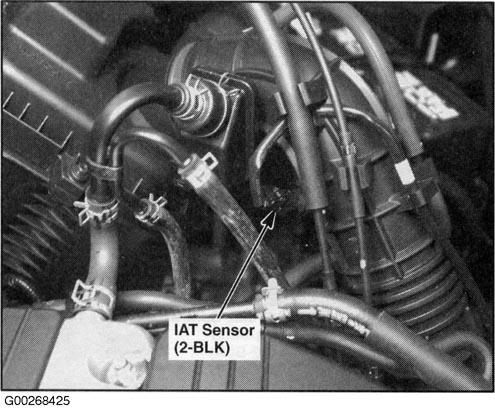

Fig 16: Left Side Of Intake Manifold

G00268425

Courtesy of AMERICAN HONDA MOTOR CO., INC.

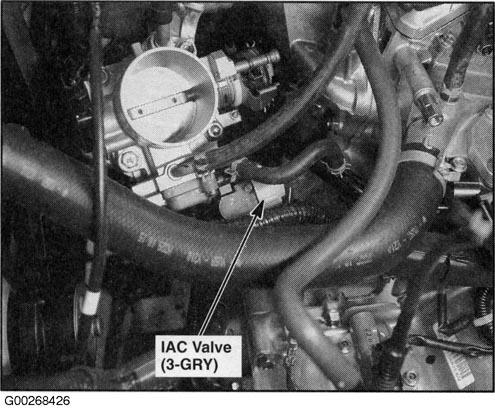

Fig 17: Left Side Of Intake Manifold

G00268426

Courtesy of AMERICAN HONDA MOTOR CO., INC.

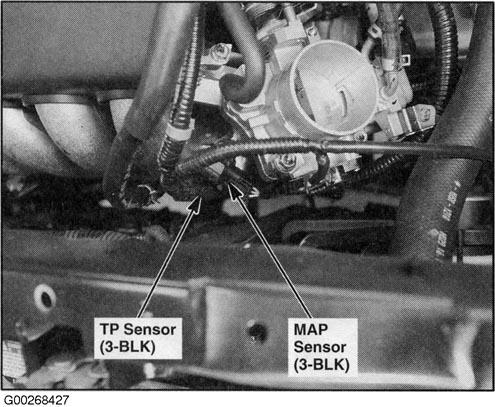

Fig 18: Left Side Of Intake Manifold

G00268427

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 19: Left Side Of Engine

G00268428

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 20: Left Side Of Engine

G00268429

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 21: Left Side Of Engine

G00268430

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 22: Transmission Housing

G00268431

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 23: Transmission Housing (A/T)

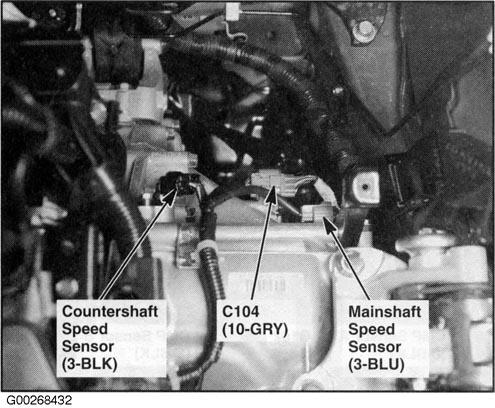

G00268432

Courtesy of AMERICAN HONDA MOTOR CO., INC.

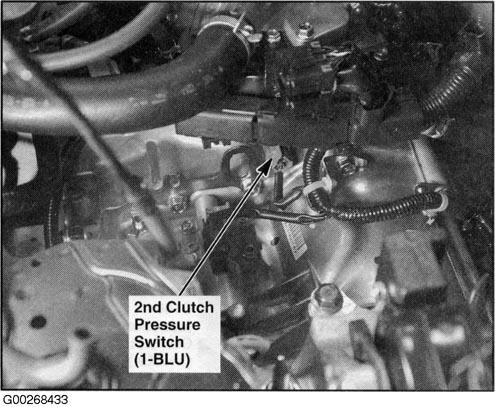

Fig 24: Transmission Housing (A/T)

G00268433

Courtesy of AMERICAN HONDA MOTOR CO., INC.

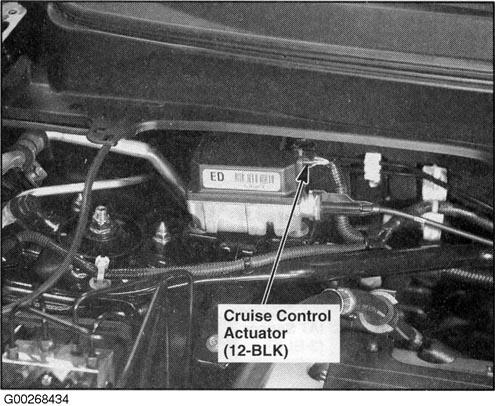

Fig 25: Right Side Of Engine Compartment (EX)

G00268434

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 26: Rear Of Engine Compartment

G00268435

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 27: Left Side Of Engine Compartment

G00268436

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 28: Under Left Side Of Cowl Cover

G00268437

Courtesy of AMERICAN HONDA MOTOR CO., INC.

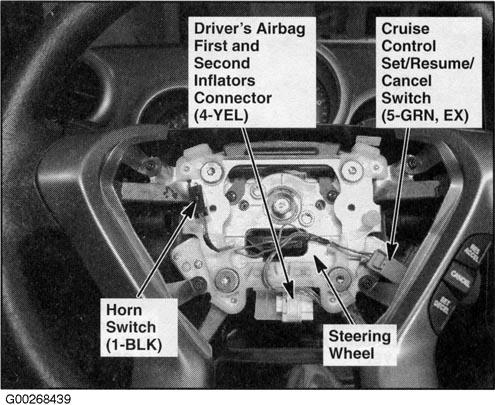

Fig 29: Inside Steering Wheel

G00268439

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 30: In Steering Column Cover

G00268440

Courtesy of AMERICAN HONDA MOTOR CO., INC.

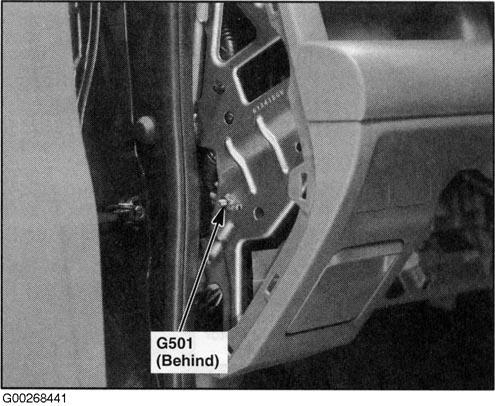

Fig 31: Behind Left Side Of Dash

G00268441

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 32: Behind Left Side Of Dash

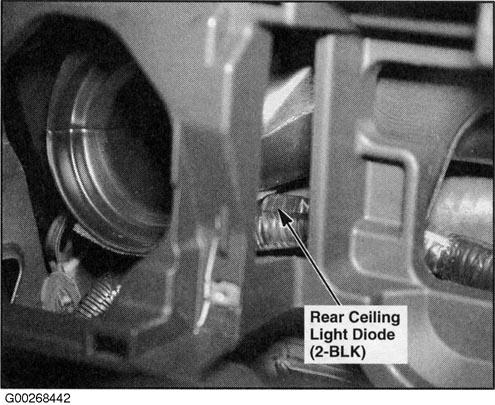

G00268442

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 33: Under Left Side Of Dash

G00268443

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 34: Behind Right Side Of Dash

G00268444

Courtesy of AMERICAN HONDA MOTOR CO., INC.

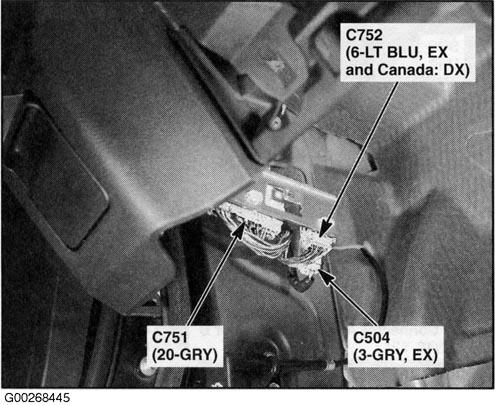

Fig 35: Under Left Side Of Dash

G00268445

Courtesy of AMERICAN HONDA MOTOR CO., INC.

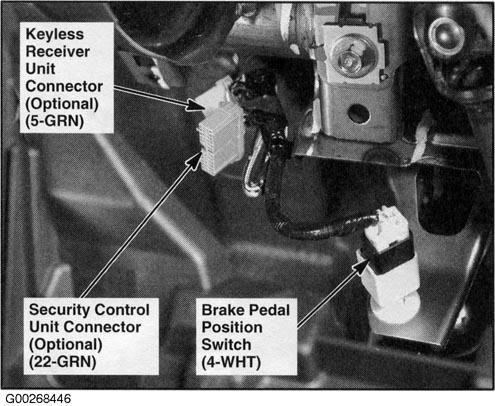

Fig 36: Under Left Side Of Dash

G00268446

Courtesy of AMERICAN HONDA MOTOR CO., INC.

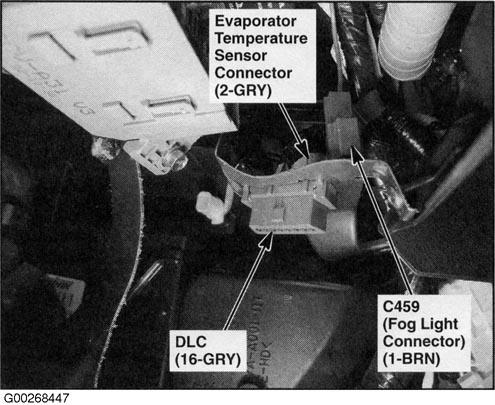

Fig 37: Under Left Side Of Dash

G00268447

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 38: Under Left Side Of Dash

G00268448

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 39: Under Middle Of Dash

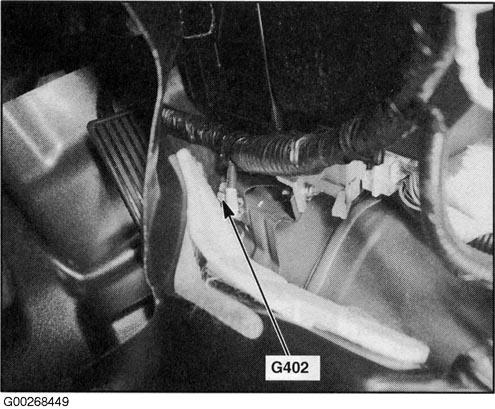

G00268449

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 40: Under Middle Of Dash

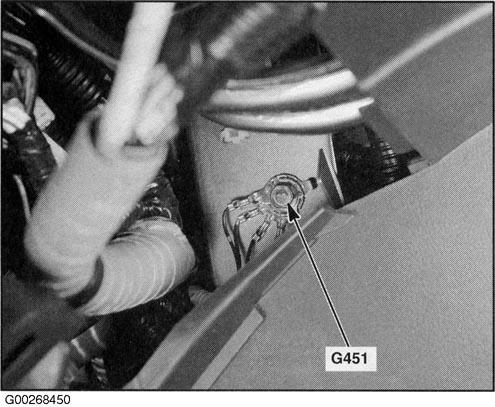

G00268450

Courtesy of AMERICAN HONDA MOTOR CO., INC.

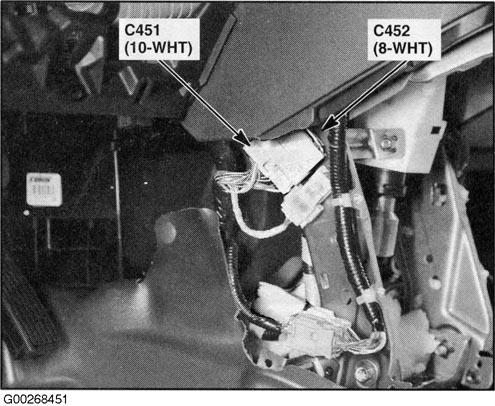

Fig 41: Under Middle Of Dash

G00268451

Courtesy of AMERICAN HONDA MOTOR CO., INC.

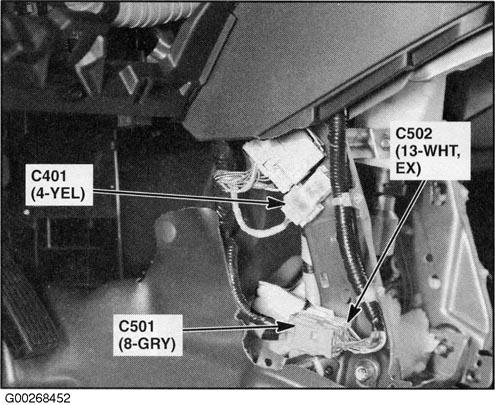

Fig 42: Under Middle Of Dash

G00268452

Courtesy of AMERICAN HONDA MOTOR CO., INC.

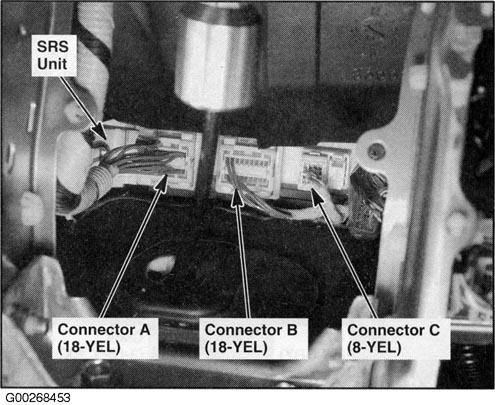

Fig 43: Under Middle Of Dash

G00268453

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 44: Under Middle Of Dash

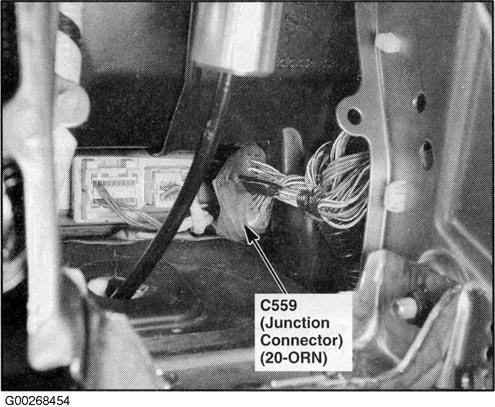

G00268454

Courtesy of AMERICAN HONDA MOTOR CO., INC.

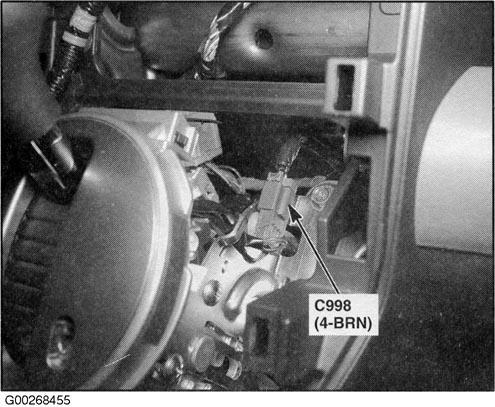

Fig 45: Under Middle Of Dash (A/T)

G00268455

Courtesy of AMERICAN HONDA MOTOR CO., INC.

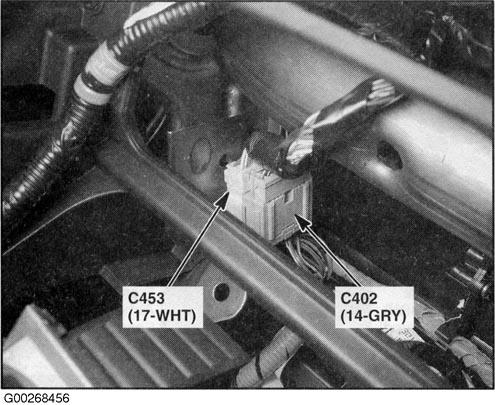

Fig 46: Under Middle Of Dash

G00268456

Courtesy of AMERICAN HONDA MOTOR CO., INC.

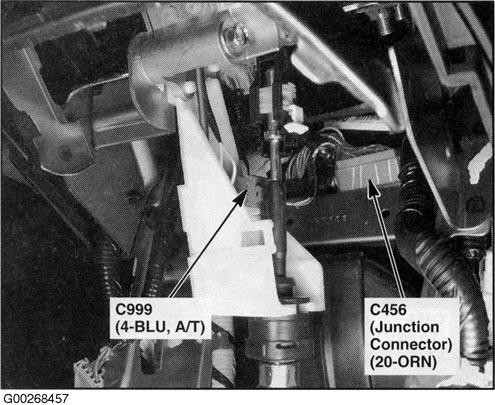

Fig 47: Under Middle Of Dash

G00268457

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 48: Under Middle Of Dash

G00268458

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 49: Under Middle Of Dash

G00268459

Courtesy of AMERICAN HONDA MOTOR CO., INC.

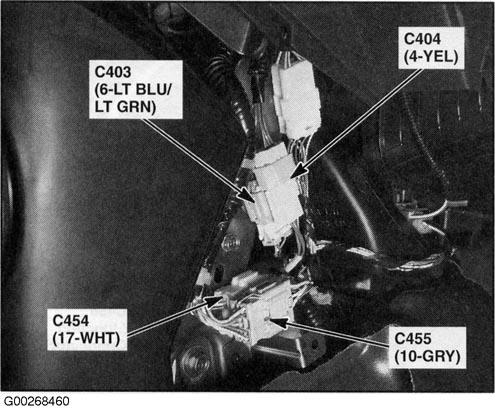

Fig 50: Under Middle Of Dash

G00268460

Courtesy of AMERICAN HONDA MOTOR CO., INC.

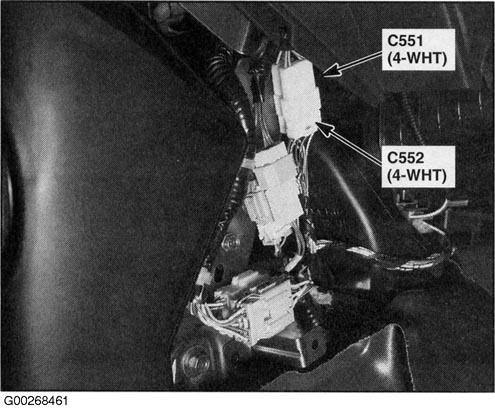

Fig 51: Under Middle Of Dash

G00268461

Courtesy of AMERICAN HONDA MOTOR CO., INC.

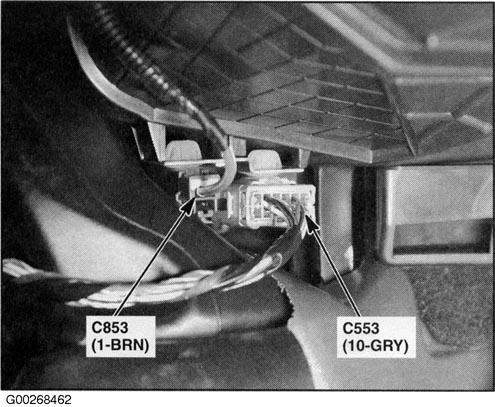

Fig 52: Under Middle Of Dash

G00268462

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 53: Behind Glove Box

G00268463

Courtesy of AMERICAN HONDA MOTOR CO., INC.

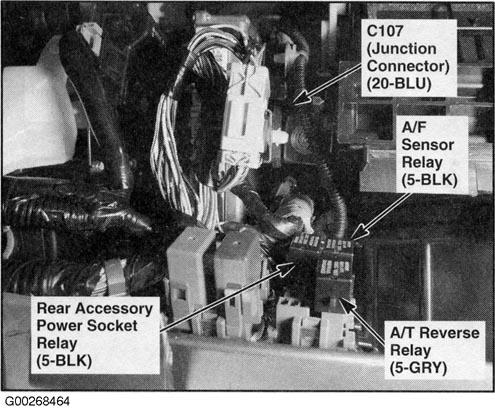

Fig 54: Behind Glove Box

G00268464

Courtesy of AMERICAN HONDA MOTOR CO., INC.

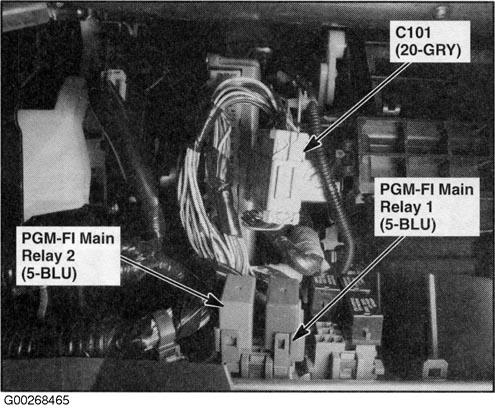

Fig 55: Behind Glove Box

G00268465

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 56: Behind Glove Box

G00268466

Courtesy of AMERICAN HONDA MOTOR CO., INC.

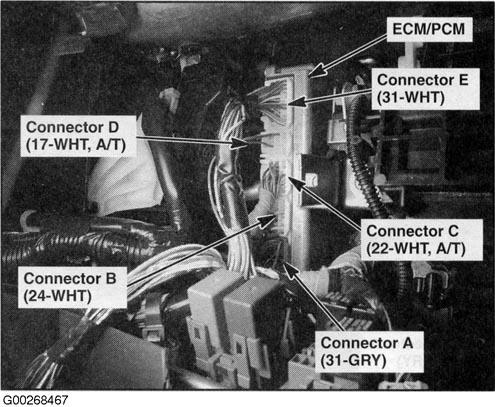

Fig 57: Behind Glove Box

G00268467

Courtesy of AMERICAN HONDA MOTOR CO., INC.

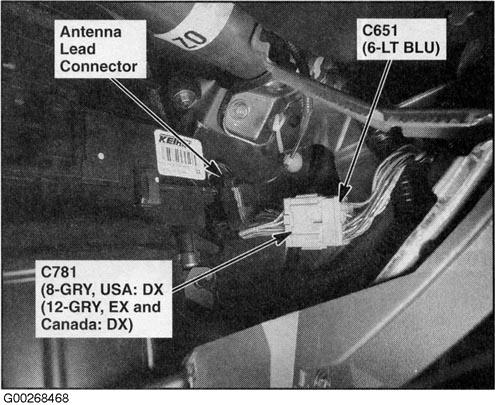

Fig 58: Under Right Side Of Dash

G00268468

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 59: Under Right Side Of Dash

G00268469

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 60: Behind Right Kick Panel (EX)

G00268470

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 61: Driver's Door

G00268471

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 62: Front Passenger's Door

G00268472

Courtesy of AMERICAN HONDA MOTOR CO., INC.

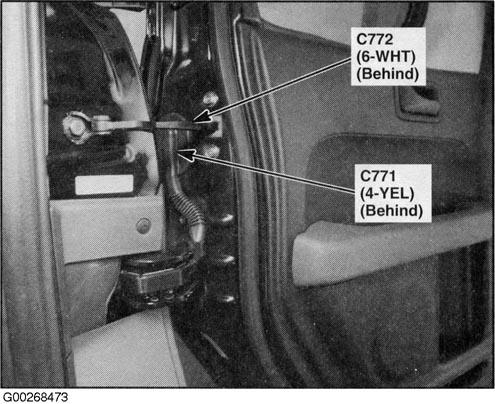

Fig 63: Left Rear Door

G00268473

Courtesy of AMERICAN HONDA MOTOR CO., INC.

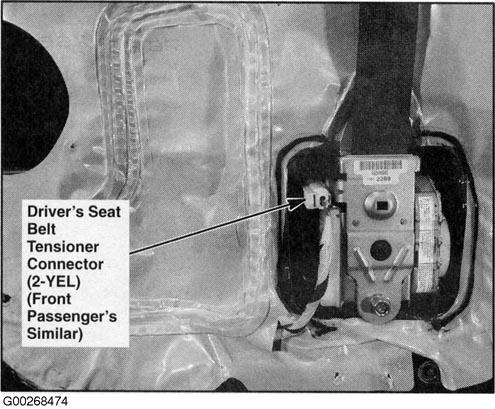

Fig 64: Left Rear Door (Right Similar)

G00268474

Courtesy of AMERICAN HONDA MOTOR CO., INC.

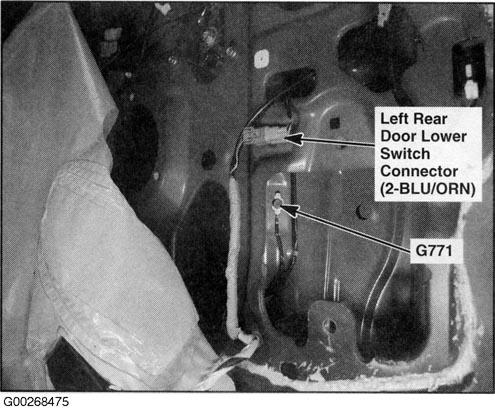

Fig 65: Left Rear Door

G00268475

Courtesy of AMERICAN HONDA MOTOR CO., INC.

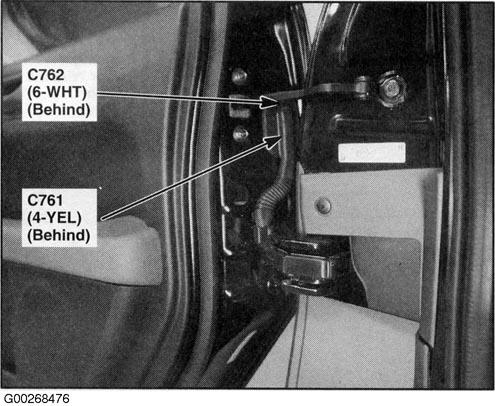

Fig 66: Right Rear Door

G00268476

Courtesy of AMERICAN HONDA MOTOR CO., INC.

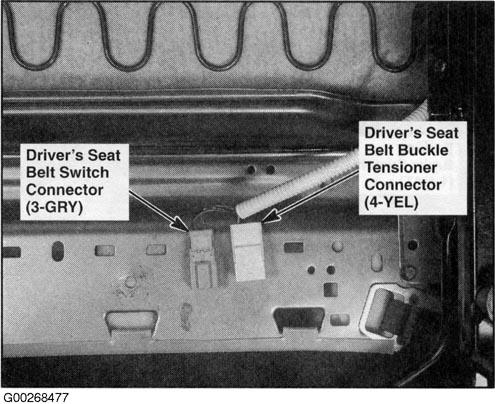

Fig 67: Under Driver's Seat

G00268477

Courtesy of AMERICAN HONDA MOTOR CO., INC.

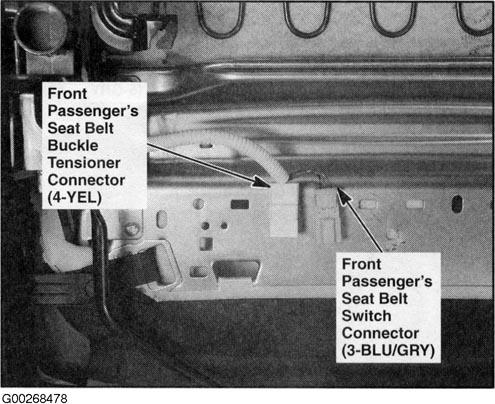

Fig 68: Under Front Passenger's Seat

G00268478

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 69: Under Front Passenger's Seat

G00268479

Courtesy of AMERICAN HONDA MOTOR CO., INC.

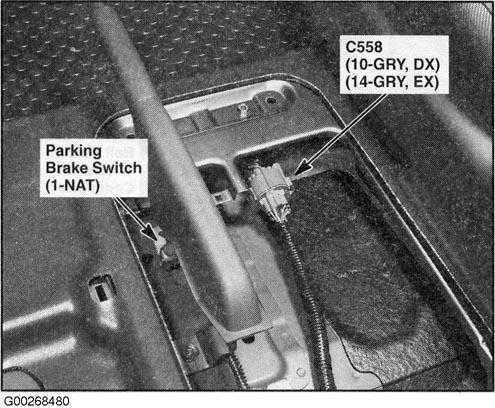

Fig 70: Under Center Console

G00268480

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 71: Middle Of Floor (Carpet Removed)

G00268481

Courtesy of AMERICAN HONDA MOTOR CO., INC.

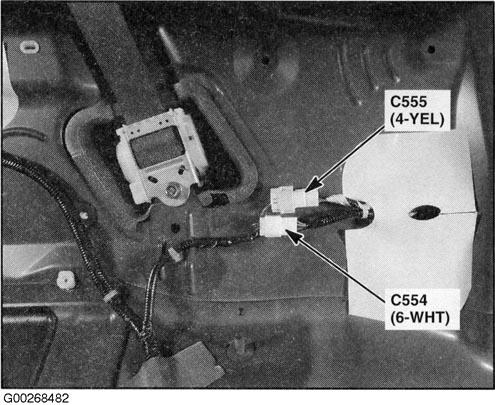

Fig 72: Left Quarter Panel

G00268482

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 73: Left Quarter Panel

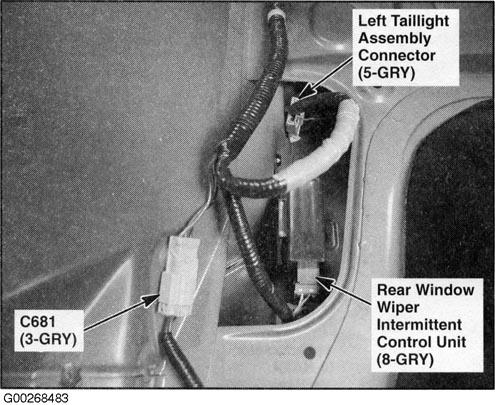

G00268483

Courtesy of AMERICAN HONDA MOTOR CO., INC.

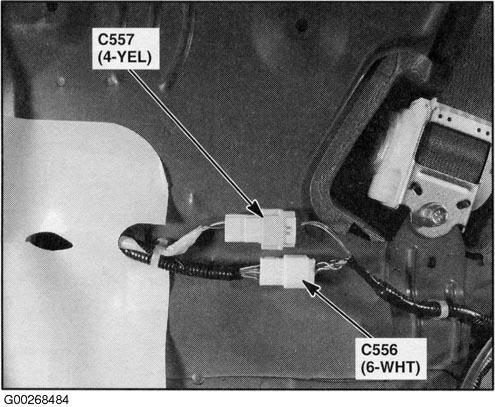

Fig 74: Right Quarter Panel

G00268484

Courtesy of AMERICAN HONDA MOTOR CO., INC.

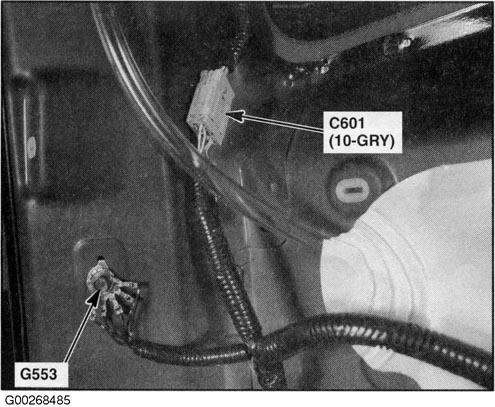

Fig 75: Left "D" Pillar

G00268485

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 76: Right "D" Pillar

G00268486

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 77: Middle Of Hatch

G00268487

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 78: Left Side Of Tailgate

G00268488

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 79: Right Side Of Tailgate

G00263919

Courtesy of AMERICAN HONDA MOTOR CO., INC.

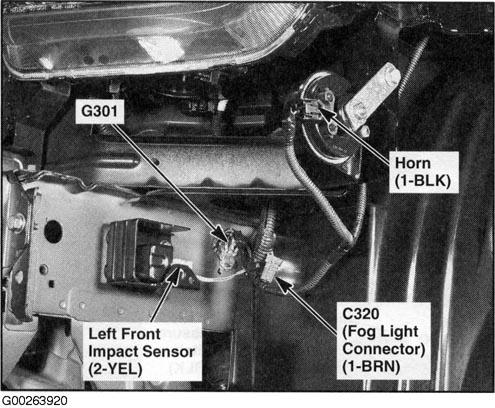

Fig 80: Behind Left Side Of Front Bumper

G00263920

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 81: Behind Right Side Of Front Bumper

G00263921

Courtesy of AMERICAN HONDA MOTOR CO., INC.

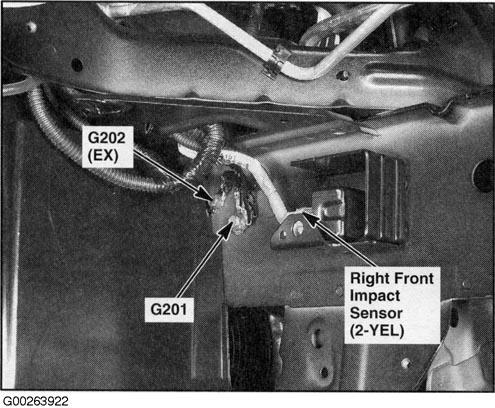

Fig 82: Behind Right Side Of Front Bumper

G00263922

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 83: Behind Right Side Of Front Bumper

G00263923

Courtesy of AMERICAN HONDA MOTOR CO., INC.

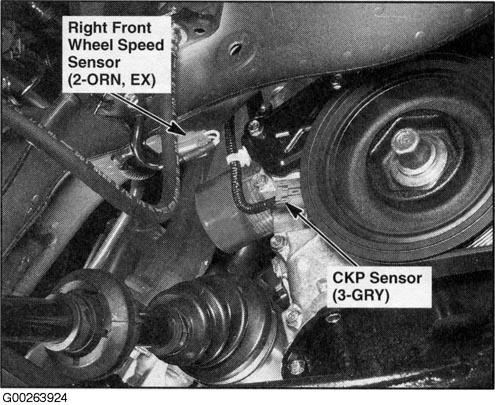

Fig 84: Right Side Of Engine Compartment

G00263924

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 85: Right Side Of Engine

G00263925

Courtesy of AMERICAN HONDA MOTOR CO., INC.

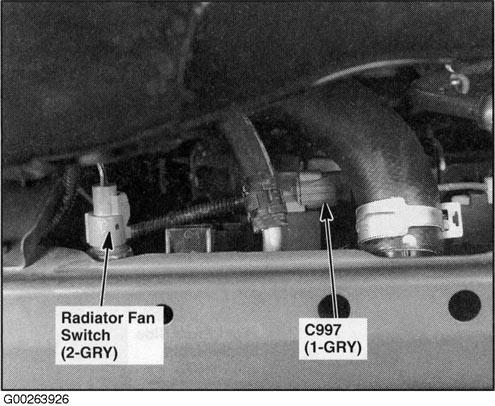

Fig 86: Front Of Engine Compartment

G00263926

Courtesy of AMERICAN HONDA MOTOR CO., INC.

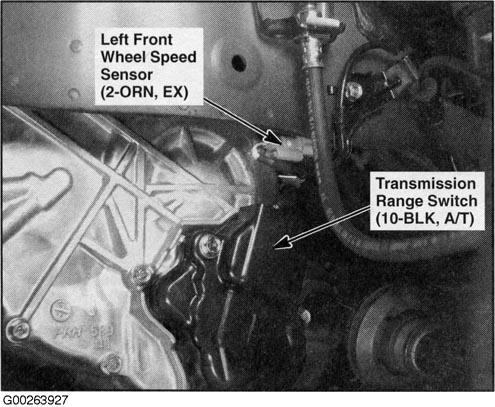

Fig 87: Left Side Of Engine Compartment

G00263927

Courtesy of AMERICAN HONDA MOTOR CO., INC.

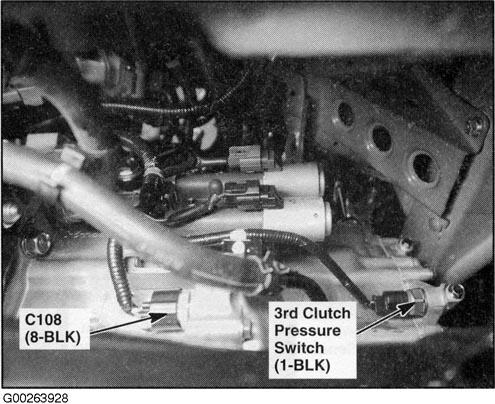

Fig 88: Transmission Housing (A/T)

G00263928

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 89: Transmission Housing (A/T)

G00263929

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 90: Under Middle Of Vehicle

G00263930

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 91: Under Left Rear Of Vehicle (EX)

G00263931

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 92: Under Left Rear Of Vehicle

G00263932

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 93: Under Left Rear Of Vehicle

G00263933

Courtesy of AMERICAN HONDA MOTOR CO., INC.

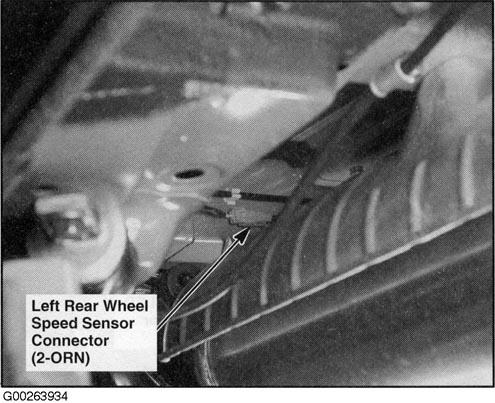

Fig 94: Under Right Rear Of Vehicle (EX)

G00263934

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 95: Transmission Housing (M/T)

G00263935

Courtesy of AMERICAN HONDA MOTOR CO., INC.

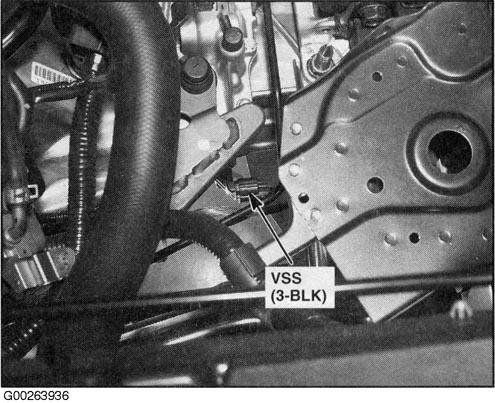

Fig 96: Transmission Housing (M/T)

G00263936

Courtesy of AMERICAN HONDA MOTOR CO., INC.

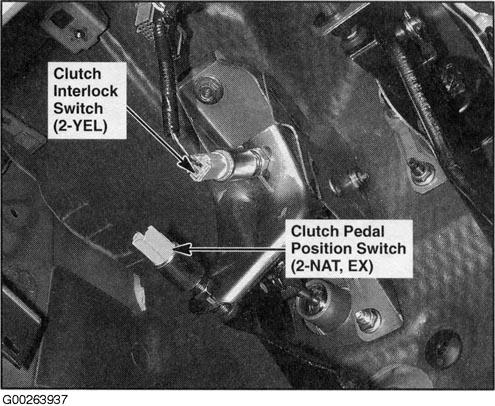

Fig 97: Under Left Side Of Dash (M/T)

G00263937

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 98: Under Left Side Of Dash (Honda Accessory)

G00263938

Courtesy of AMERICAN HONDA MOTOR CO., INC.

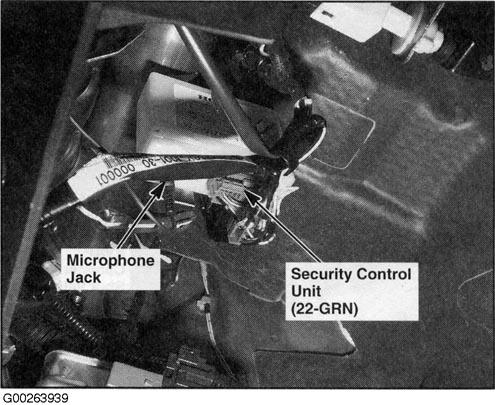

Fig 99: Under Left Side Of Dash (Honda Accessory)

G00263939

Courtesy of AMERICAN HONDA MOTOR CO., INC.

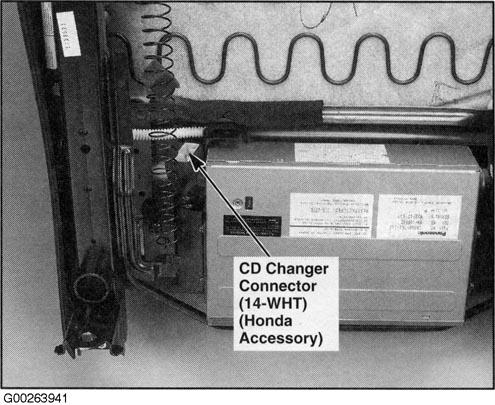

Fig 100: Under Front Passenger's Seat

G00263941

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 101: Right Quarter Panel (Honda Accessory)

G00263942

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 102: Front Of Engine Compartment (EX)

G00263943

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 103: Underdash Fuse/Relay Box

G00292073

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 104: Underhood Fuse/Relay Box

G00292074

Courtesy of AMERICAN HONDA MOTOR CO., INC.

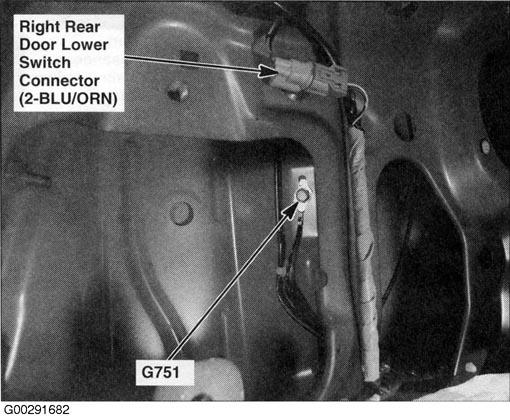

Fig 105: Right Rear Door

G00291682

Courtesy of AMERICAN HONDA MOTOR CO., INC.
