Circuit Protection Devices

CIRCUIT PROTECTION DEVICES LOCATION

Component Location

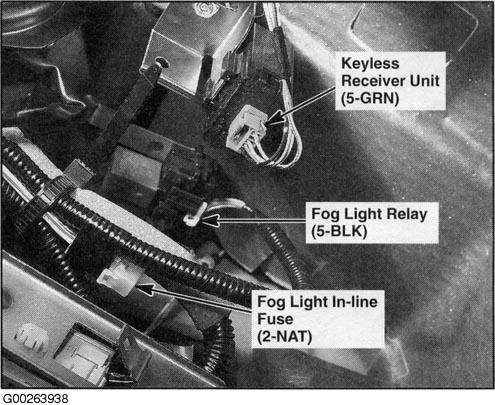

Fog Light In-Line Fuse Under left side of dash. See Figure .

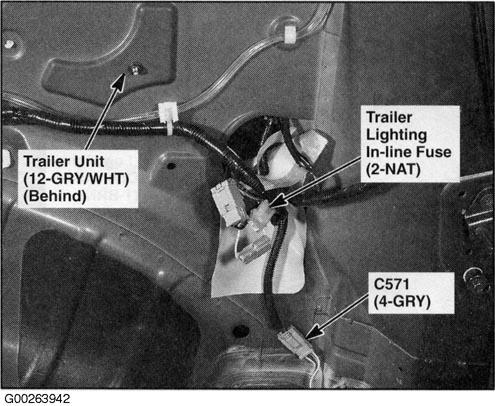

Trailer Lighting In-Line Fuse On right quarter panel. See Figure .
Underdash Fuse/Relay Box Behind left side of dash, right of steering column. See Figure .
Underhood Fuse/Relay Box At left rear of engine compartment. See Figure .
