Engine Mount Replacement

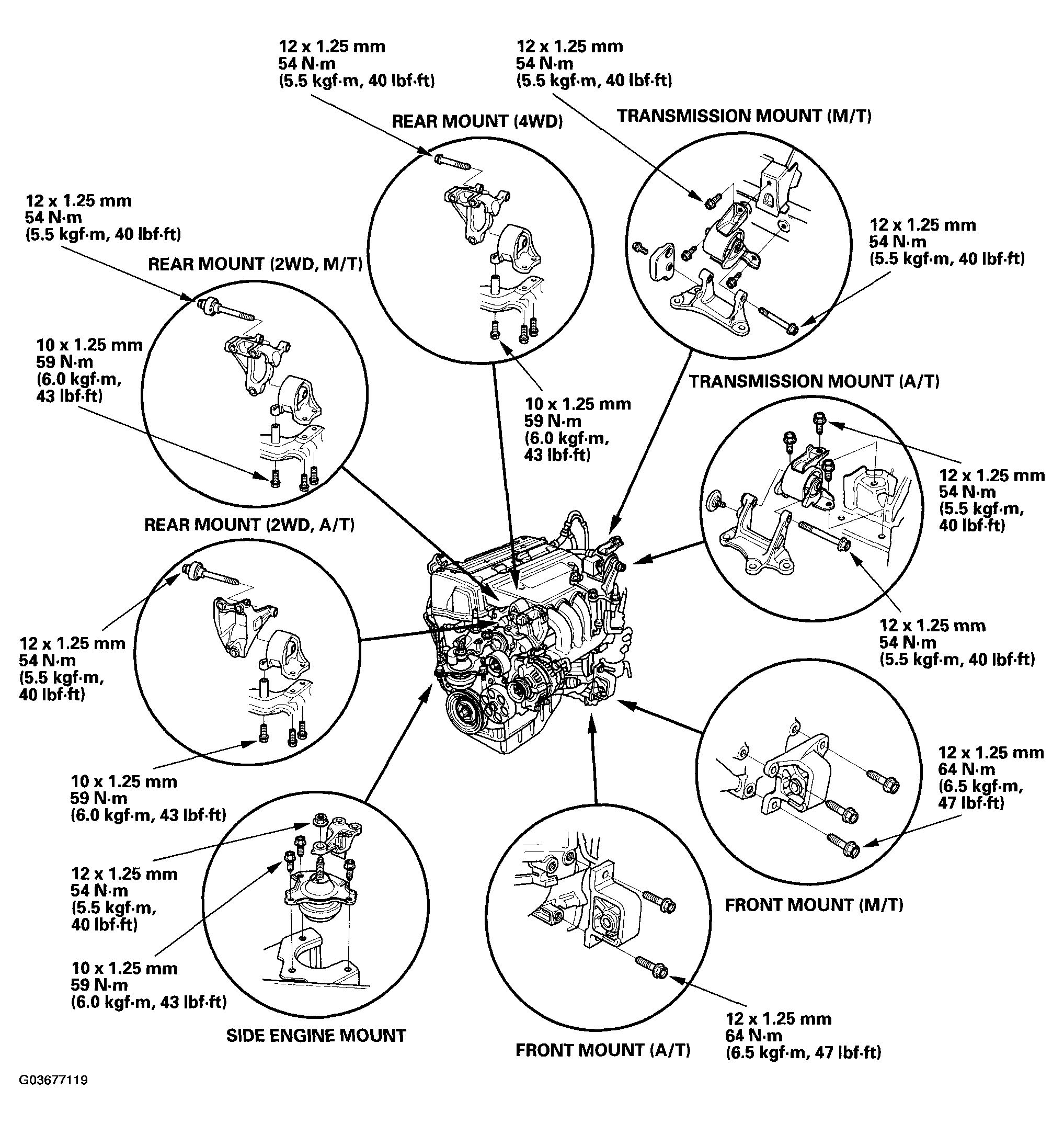

Fig 1: View Of Various Engine Mounts And Torque Specifications

G03677119

Courtesy of AMERICAN HONDA MOTOR CO., INC.
