Clutch Interlock Switch Test

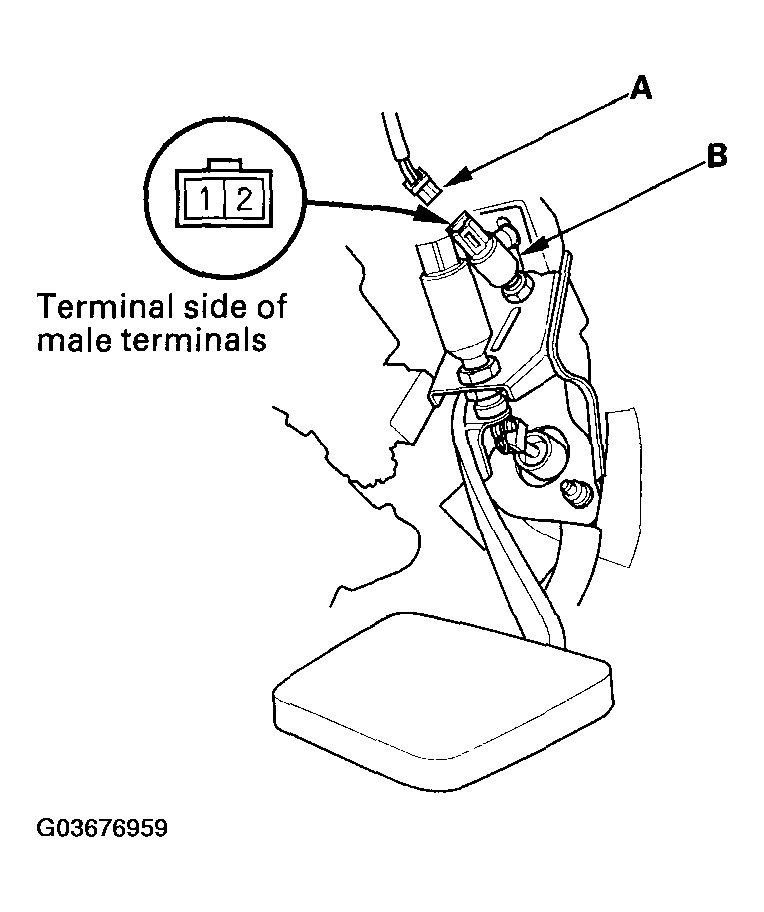

Disconnect the clutch interlock switch 2P connector (A).

Fig 1: Disconnecting Clutch Interlock Switch 2P Connector
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the clutch interlock switch (B).
Check for continuity between the terminals according to the table.
- If the continuity is not as specified, replace the clutch interlock switch.
- If OK, install the clutch interlock switch, and adjust the pedal height (see CLUTCH PEDAL, CLUTCH PEDAL POSITION SWITCH, AND CLUTCH INTERLOCK SWITCH ADJUSTMENT ).
Fig 2: Checking Continuity Between Clutch Interlock Switch Terminals
Courtesy of AMERICAN HONDA MOTOR CO., INC.
