Third Row Seat Access Cable Replacement

WARNING: This page is about a different car, the 2006 Acura MDX, 2005 Acura MDX, 2004 Acura MDX, and 2003 Acura MDX. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Take care not to bend the cable.
  1. Slide the right second row seat forward fully.
  2. Remove the pivot bolt cover, and using a T30 Torx bit, remove the pivot bolt from both sides, '03 model (see '03 MODEL  ), '04-06 models (see '04-06 MODELS  ).
  3. Remove the right second row seat-back cover/pad from the seat-back frame (see SECOND ROW SEAT COVER REPLACEMENT  ).
  4. Lift the right second row seat cushion up, and remove the outer bracket cover, '03 model (see '03 MODEL  ), '04-06 models (see '04-06 MODELS  ).
  5. Disconnect the third row seat access cable (A) at both ends, then remove the cable.

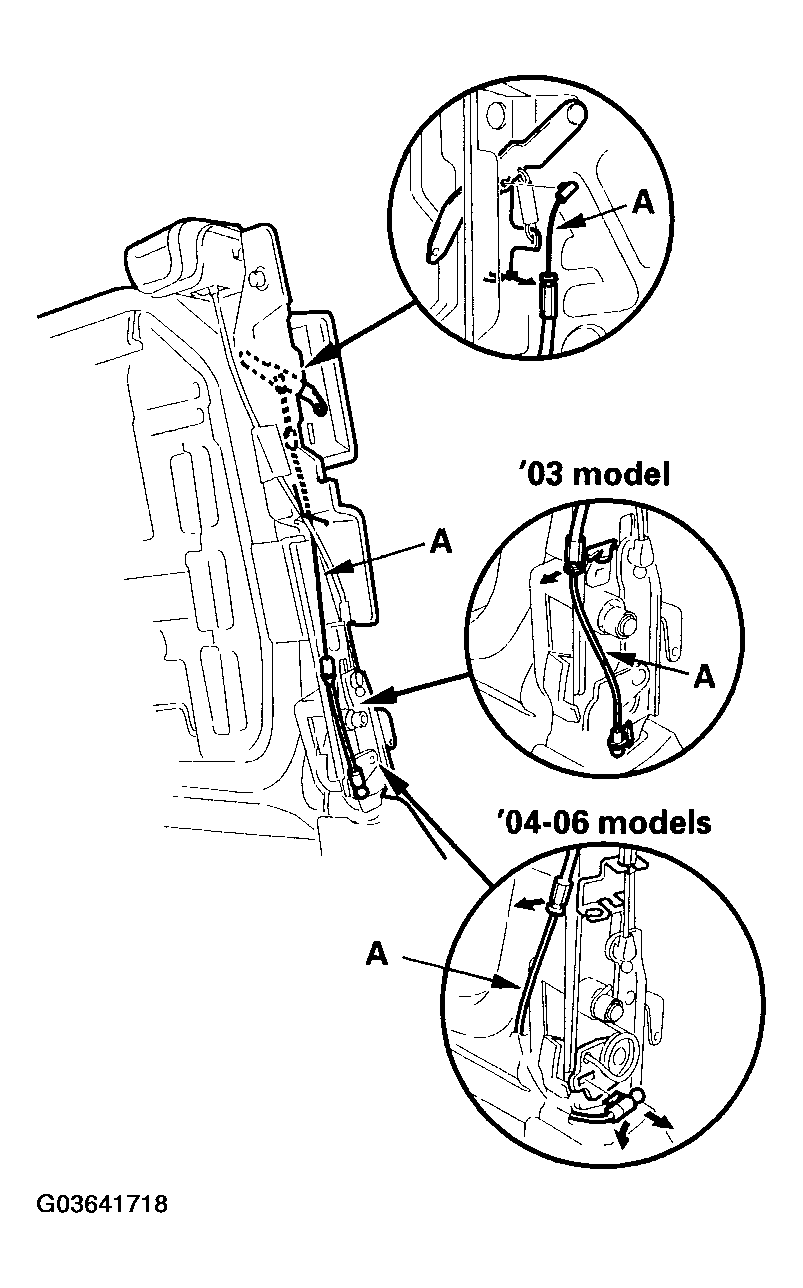

    Fig 1: Disconnecting Third Row Seat Access Cable
    G03641718Courtesy of AMERICAN HONDA MOTOR CO., INC.
  6. Install the third row seat access cable in the reverse order of removal, and make sure the cable is connected securely.
