Fuel Pressure Relieving

Before disconnecting fuel lines or hoses, relieve pressure from the system by disconnecting the fuel tube/quick connect fitting in the engine compartment.

1. Turn the ignition switch OFF.

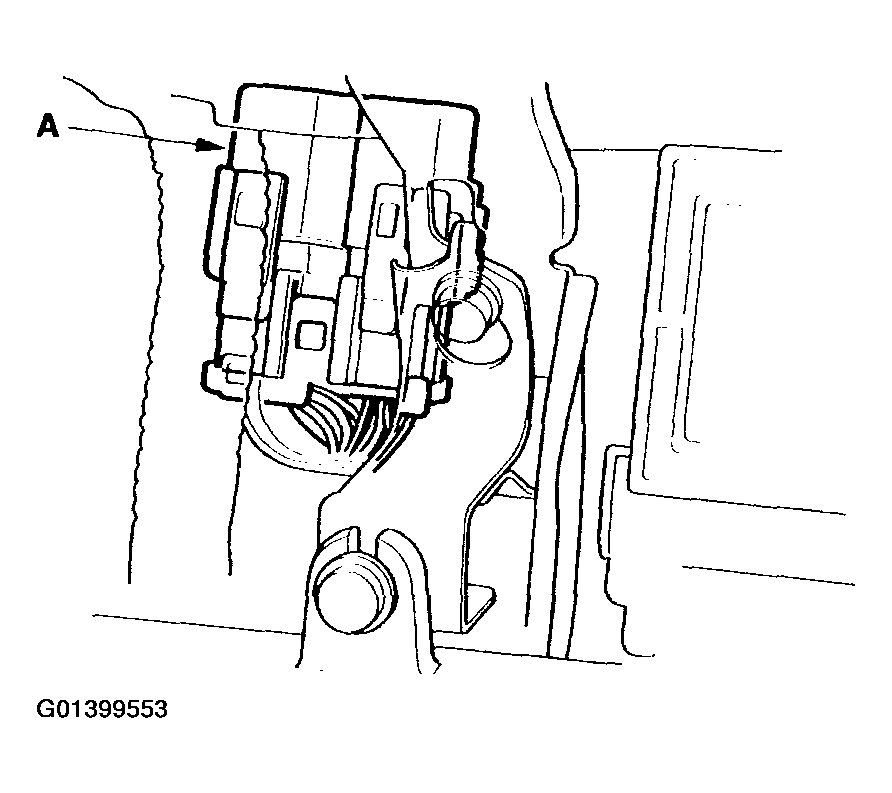

2. Remove PGM-FI main relay 2 (A).
   Fig 1: Removing PGM-FI Main Relay 2

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
3. Start the engine, and let it idle until it is stalls.
   NOTE: The DTCs or Temporary DTCs P0301, P0302, P0303, P0304 may come on during this procedure. If any DTCs are stored, ignore them.
4. Turn the ignition switch OFF.
5. Remove the fuel fill cap, and relieve fuel pressure in the fuel tank.
6. Remove the engine cover.
7. Disconnect the negative cable from the battery.
8. Check the fuel quick-connect fitting for dirt, and clean it if necessary.

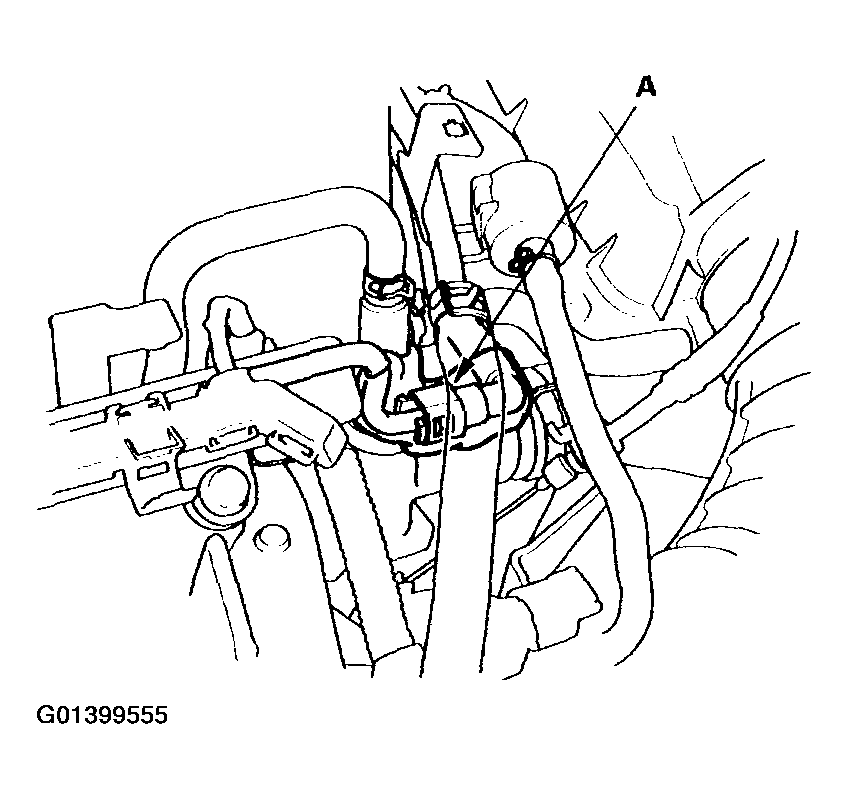

9. Place a rag or shop towel over the quick-connect fitting (A).
   Fig 2: Disconnecting The Quick-Connect Fitting

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
10. Disconnect the quick-connect fitting (A): Hold the connector (B) with one hand, and squeeze the retainer tabs (C) with the other hand to release them from the locking tabs (D). Pull the connector off.
    NOTE:

    • To prevent the remaining fuel in the fuel feed line or hose from flowing out, with a rag or shop towel.
    • Be careful not to damage the line (E) or other parts.
    • Do not use tools.
    • If the connector does not move, keep the retainer tabs pressed down, and alternately pull and push the connector until it comes off easily.
    • Do not remove the retainer from the line; once removed, the retainer must be replaced with a new one.
      Fig 3: Disconnecting Connector

      Courtesy of AMERICAN HONDA MOTOR CO., INC.
11. After disconnecting the quick-connect fitting, check it for dirt or damage (see FUEL LINE/QUICK-CONNECT FITTING REMOVAL  ).
