Fuel Line Inspection

Check the fuel system lines, hoses, and fuel filter for damage, leaks, and deterioration. Replace any damaged parts.

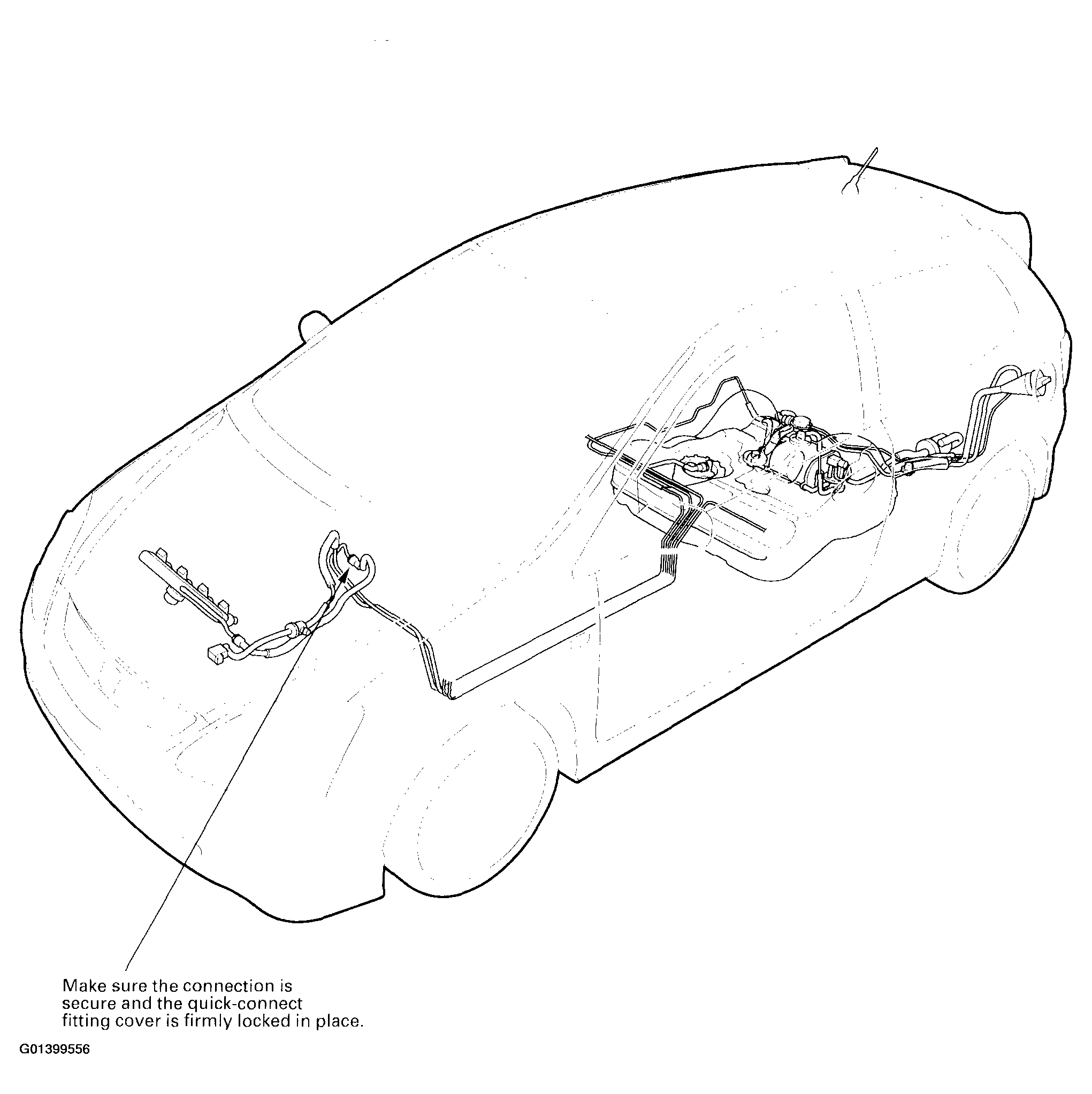

Fig 1: Checking The Fuel System Lines, Hoses, And Fuel Filter For Damage, Leaks, And Deterioration (1 Of 2)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

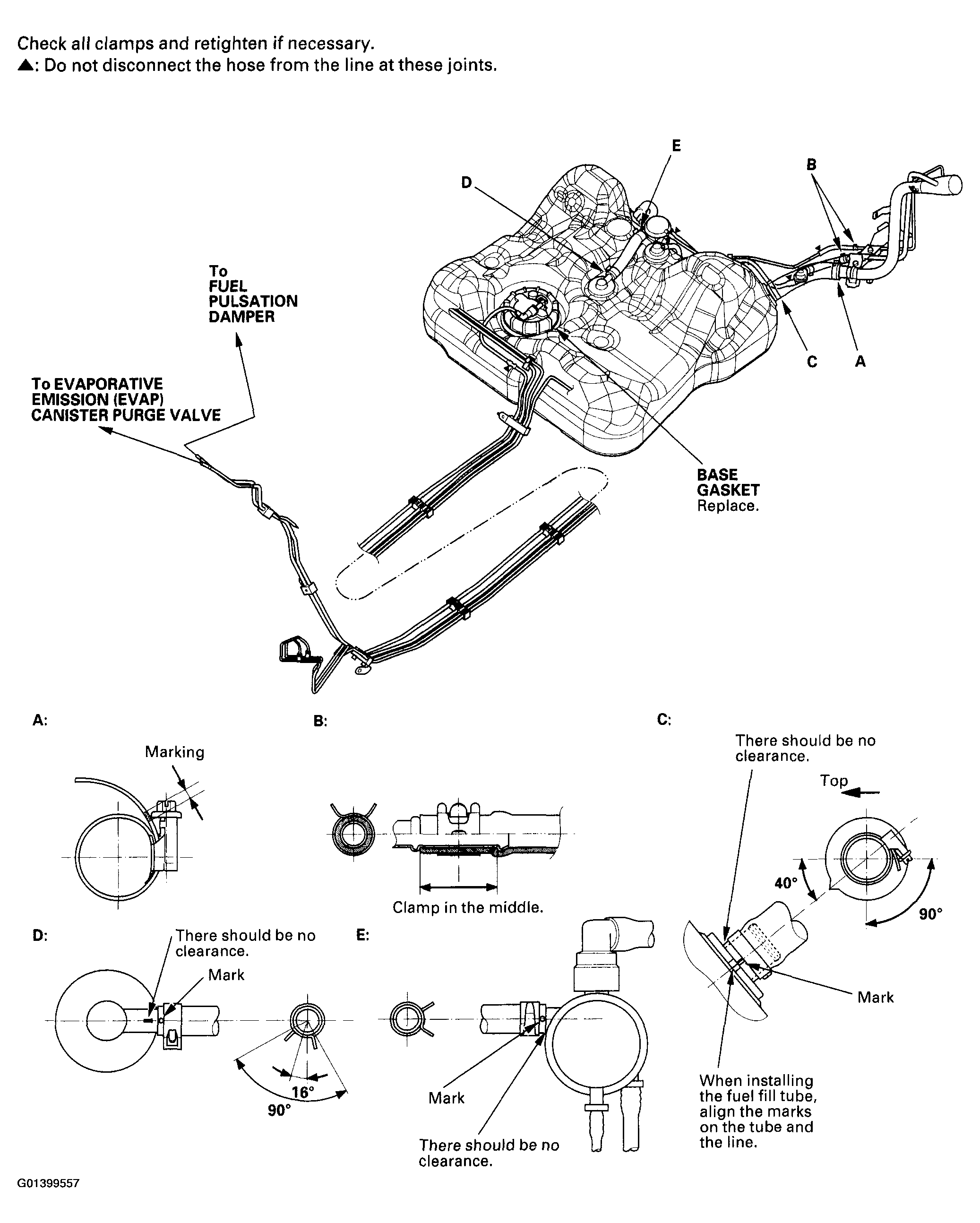

Fig 2: Checking The Fuel System Lines, Hoses, And Fuel Filter For Damage, Leaks, And Deterioration (2 Of 2)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
