Drive Belt Inspection

Check that the auto-tensioner indicator (A) is within the standard range (B) as shown. If it is out of the standard range, replace the drive belt (see DRIVE BELT REPLACEMENT ).

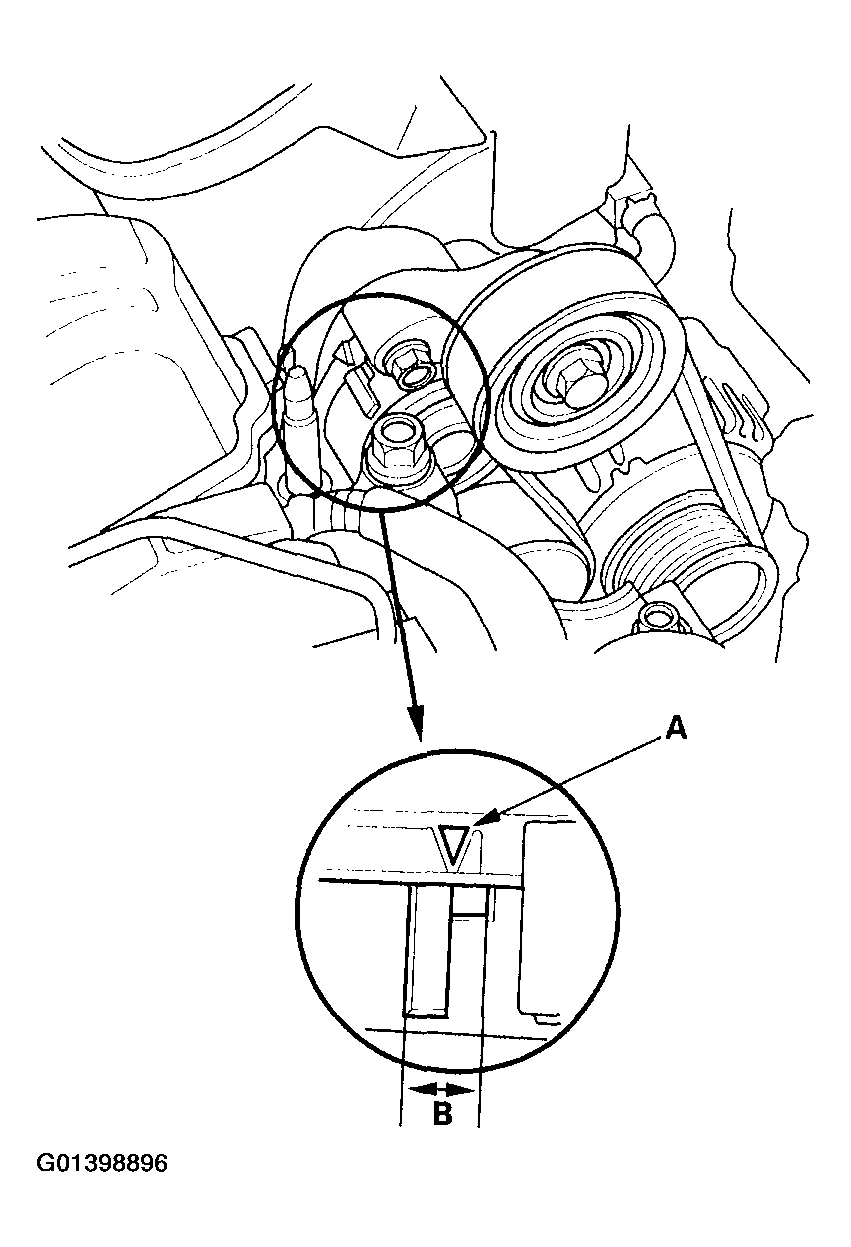

Fig 1: Checking The Auto-Tensioner Indicator

Courtesy of AMERICAN HONDA MOTOR CO., INC.
