Audio Unit Removal/Installation

NOTE:
  • Put on gloves to protect your hands.
  • Take care not to scratch the dashboard and related parts
  1. Make sure you have the anti-theft code for the radio, then write down the frequencies for the radio's preset buttons.
  2. Remove the driver's dashboard lower cover (see DRIVER'S DASHBOARD LOWER COVER REMOVAL/INSTALLATION ).
  3. Open the glove box. Remove the glove stops, then let the glove box hang down (see GLOVE BOX REMOVAL/INSTALLATION ).
  4. Remove the two mounting bolts, then pull out the center panel (A).

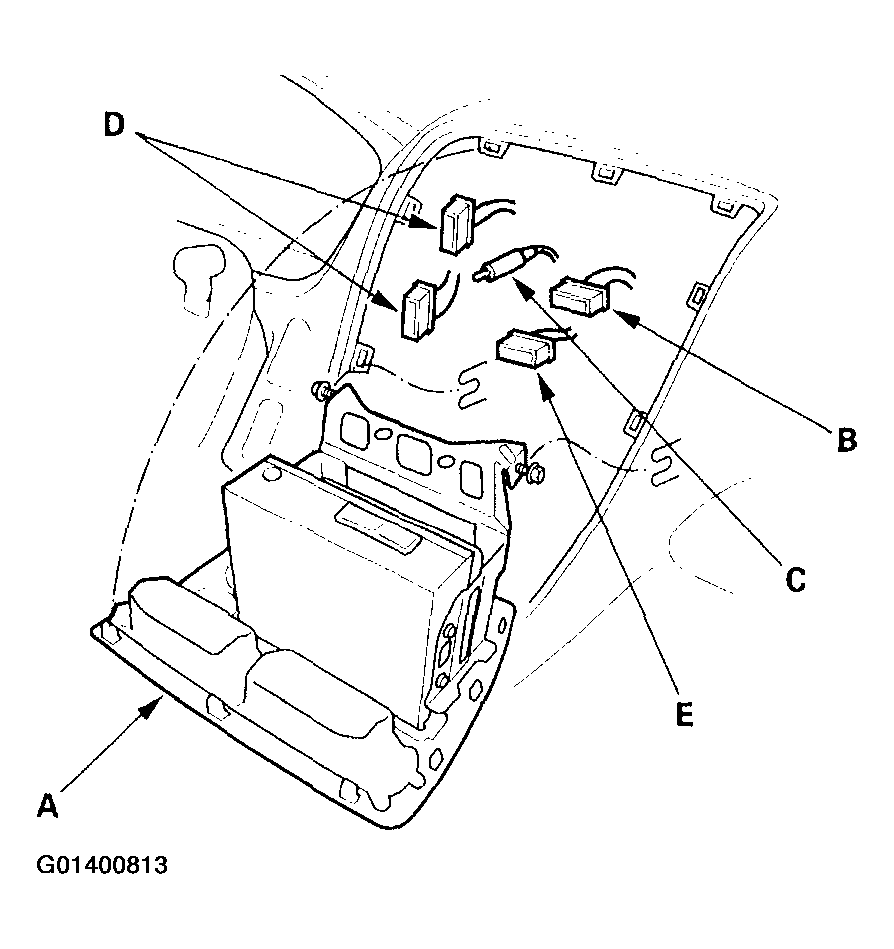

    Fig 1: Pulling Out The Center Panel
    G01400813Courtesy of AMERICAN HONDA MOTOR CO., INC.
  5. Disconnect the audio connector (B) and antenna lead (C), heater control panel connectors (D) and HVAC push switch assembly (E), then remove the center panel.
  6. Remove the heater control panel (see HEATER CONTROL PANEL AND PUSH SWITCH ASSEMBLY REMOVAL AND INSTALLATION ).
  7. Remove the four mounting bolts and the audio unit from the radio brackets.

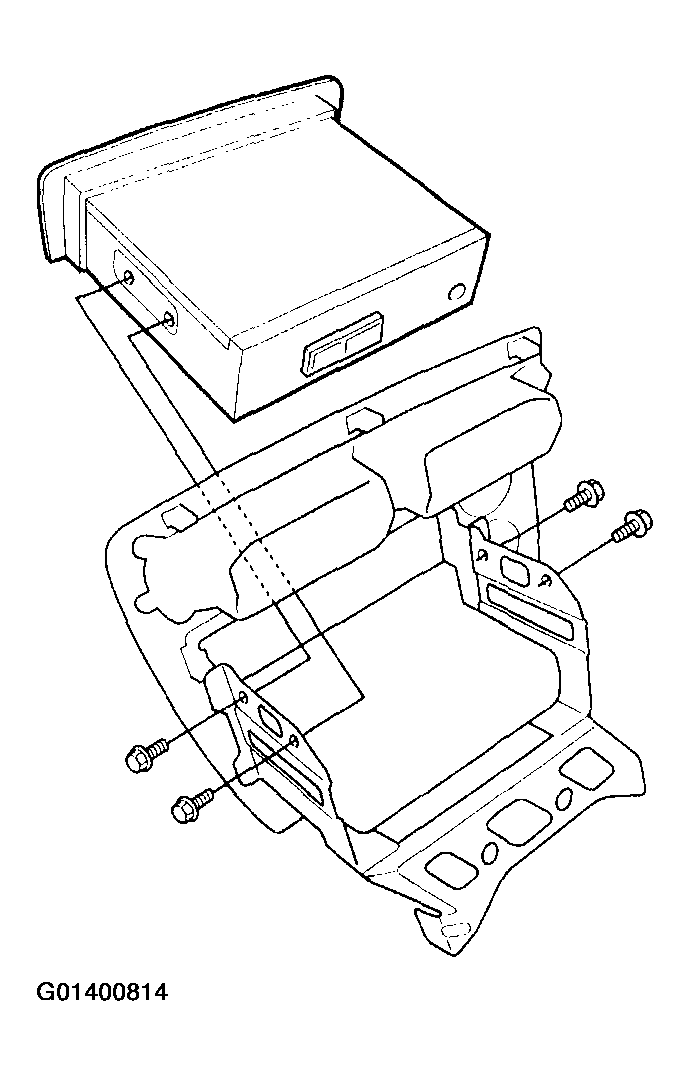

    Fig 2: Removing The Audio Unit
    G01400814Courtesy of AMERICAN HONDA MOTOR CO., INC.
  8. Install the audio unit in the reverse order of removal, and note these items:
    • Make sure the audio unit and A/C connectors are plugged in properly, and the antenna lead is connected properly.
    • Enter the anti-theft code for the radio, then enter the customer's radio station presets.
