Resonator Replacement: Notes

  1. Remove the engine cover.
  2. Remove the bolts (A).

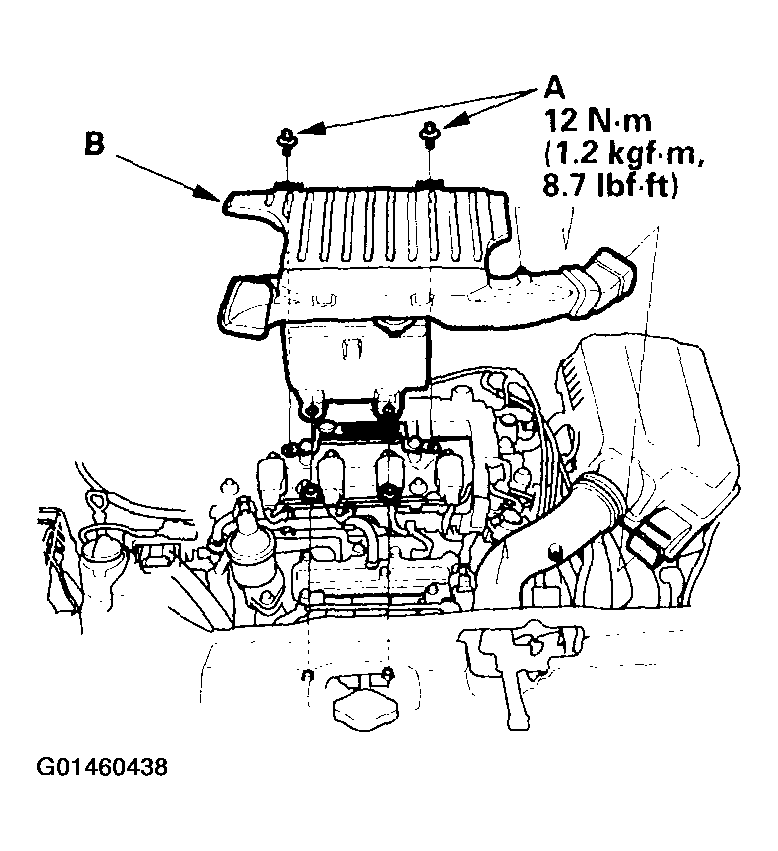

    Fig 1: Removing Resonator Bolts
    G01460438Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Remove the resonator (B).
  4. Install the parts in the reverse order of removal.
