Component Location Index

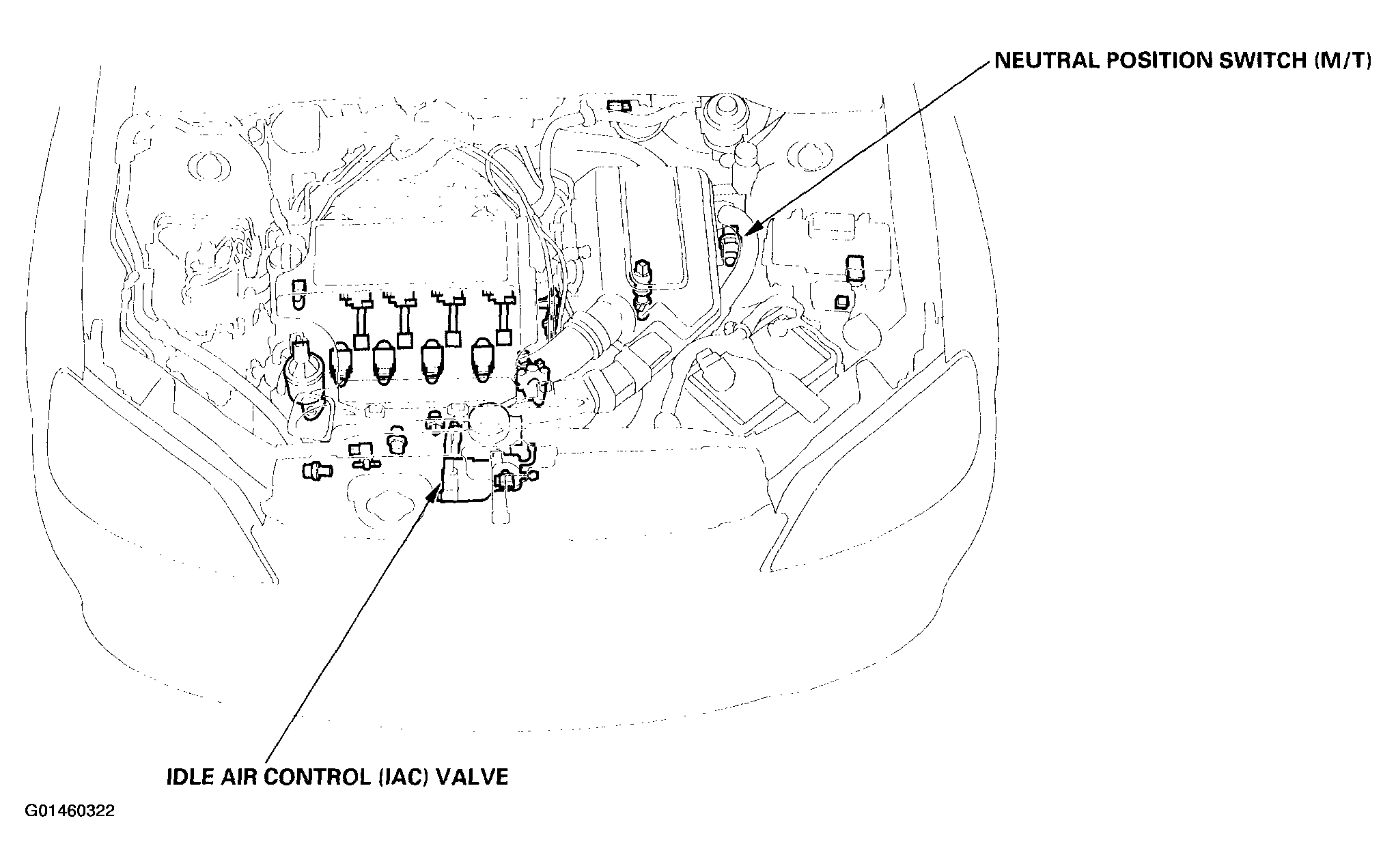

Fig 1: Identifying Idle Control System Components (1 Of 2)
G01460322Courtesy of AMERICAN HONDA MOTOR CO., INC.

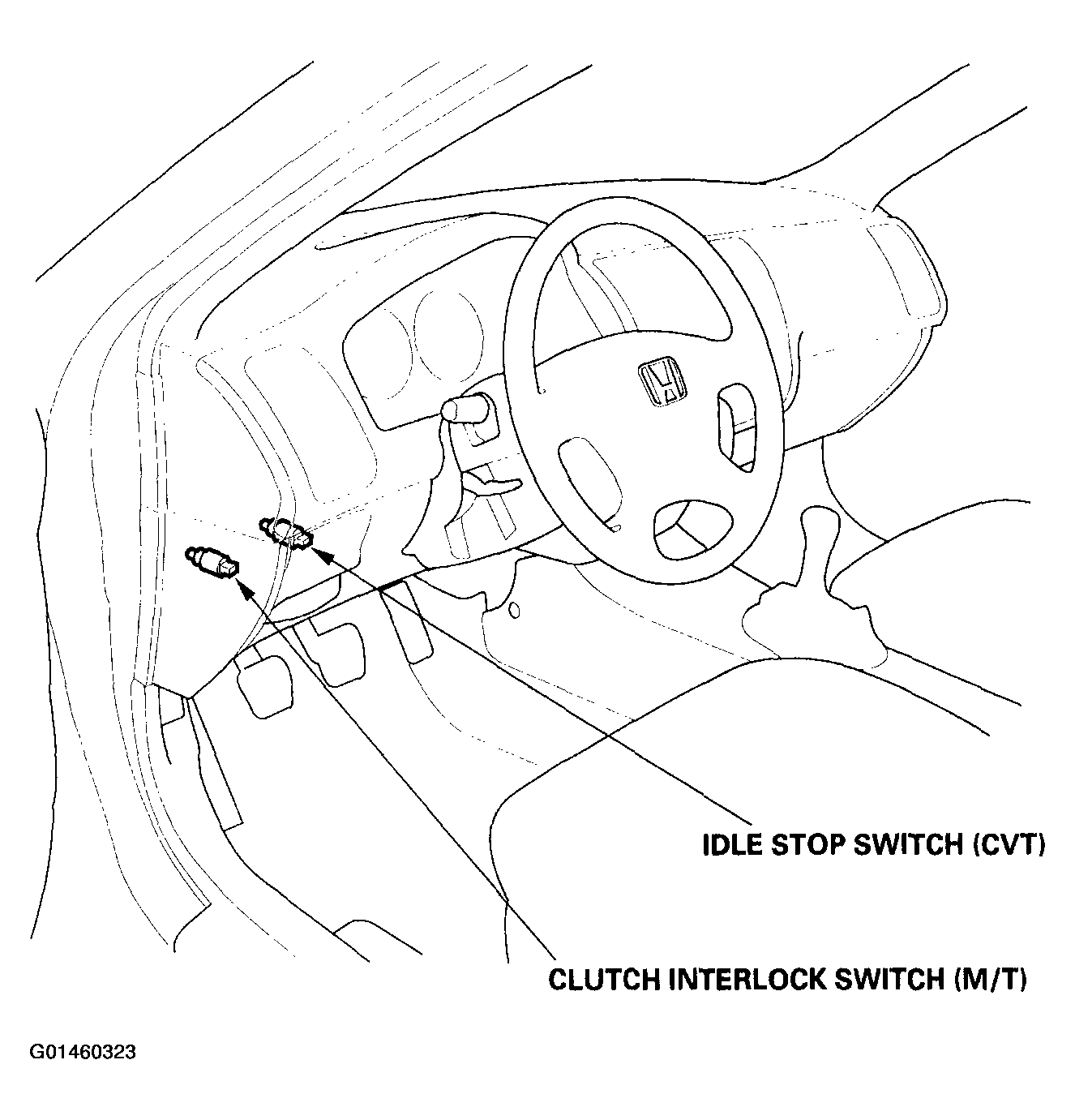

Fig 2: Identifying Idle Control System Components (2 Of 2)
G01460323Courtesy of AMERICAN HONDA MOTOR CO., INC.
