Spark Plug Inspection

Inspect the electrodes and ceramic insulator.
- Burned or worn electrodes may be caused by:
  - Advanced ignition timing
  - Loose spark plug
  - Plug heat range too hot
  - Insufficient cooling
- Fouled plug may be caused by:
  - Retarded ignition timing
  - Oil in combustion chamber
  - Incorrect spark plug gap
  - Plug heat range too cold
  - Excessive idling/low speed running
  - Clogged air cleaner element
  - Deteriorated ignition coil

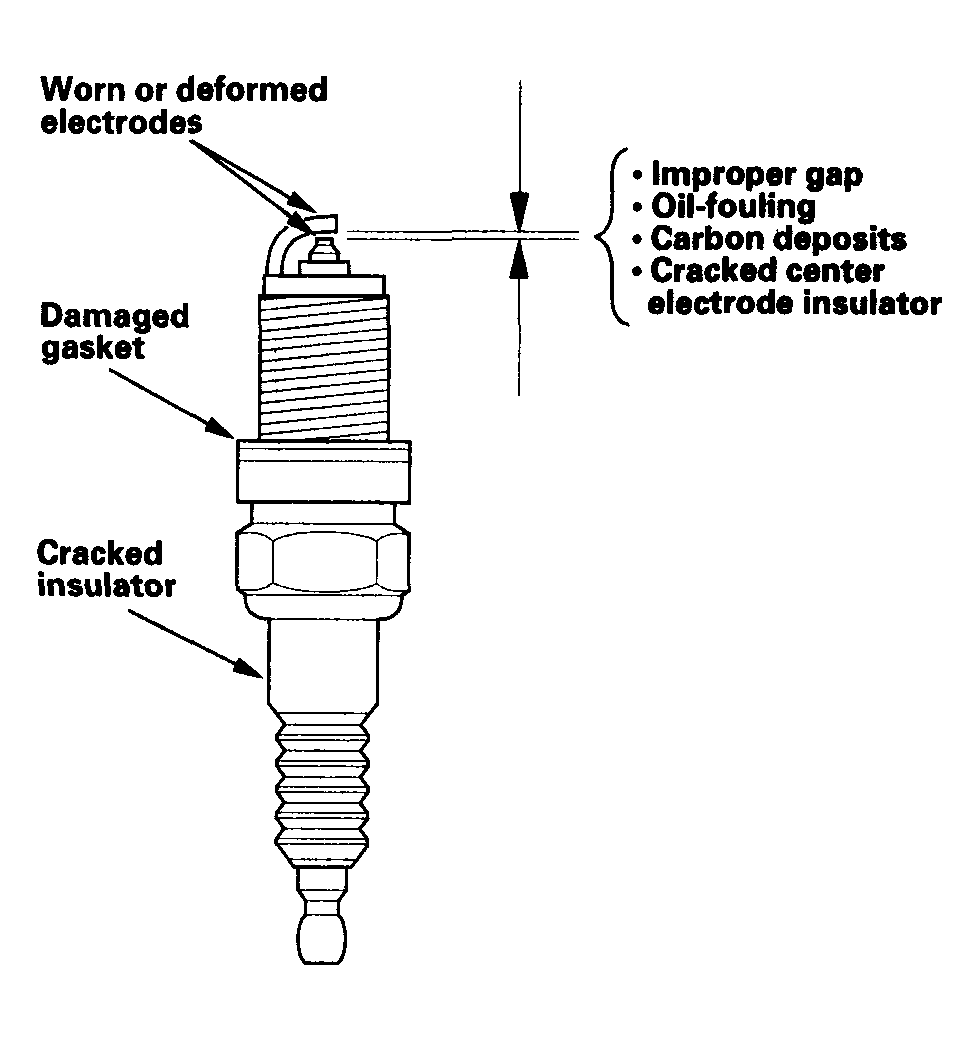

    Fig 1: Identifying Damaged Gasket
    Courtesy of AMERICAN HONDA MOTOR CO., INC.
Do not adjust the gap of platinum tip plugs (A); replace the spark plug if the gap is out of specification.
Electrode Gap

Standard (New): 0.7-0.8 mm (0.028-0.031 in.)

Fig 2: Locating Platinum Tip Of Spark Plugs
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Replace the plug at the specified interval, or if the center electrode is rounded (A). Use only the spark plug listed.
Spark Plug: PFR7N-D (NGK)

Fig 3: Locating Platinum Tip Of Spark Plugs
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Apply a small amount of anti-seize compound to the plug threads, and screw the plugs into the cylinder head, finger-tight. Then torque them to 18 N.m (1.8 kgf.m, 13 lbf.ft).
