Fuel Tank Vapor Control Valve Replacement

  1. Remove the fuel tank (see FUEL TANK REPLACEMENT ).
  2. Remove the fuel tank vapor control valve (A) from the fuel tank (B).

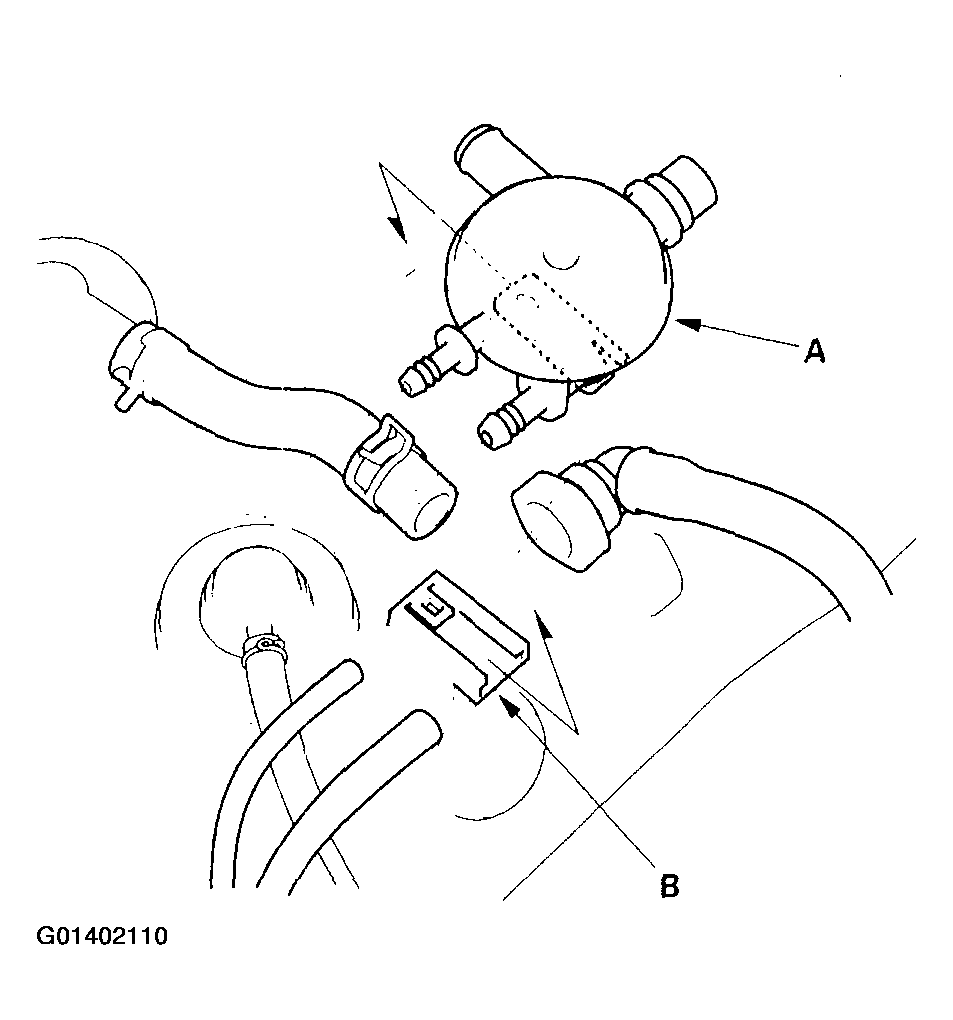

    Fig 1: Removing Fuel Tank Vapor Control Valve
    G01402110Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Install the fuel tank vapor control valve.
  4. Install the fuel tank (see FUEL TANK REPLACEMENT ).
