Motor Test

  1. Remove the driver's door panel (see FRONT DOOR PANEL REMOVAL/INSTALLATION ).
  2. Disconnect the 6P connector (A) from the driver's window motor.

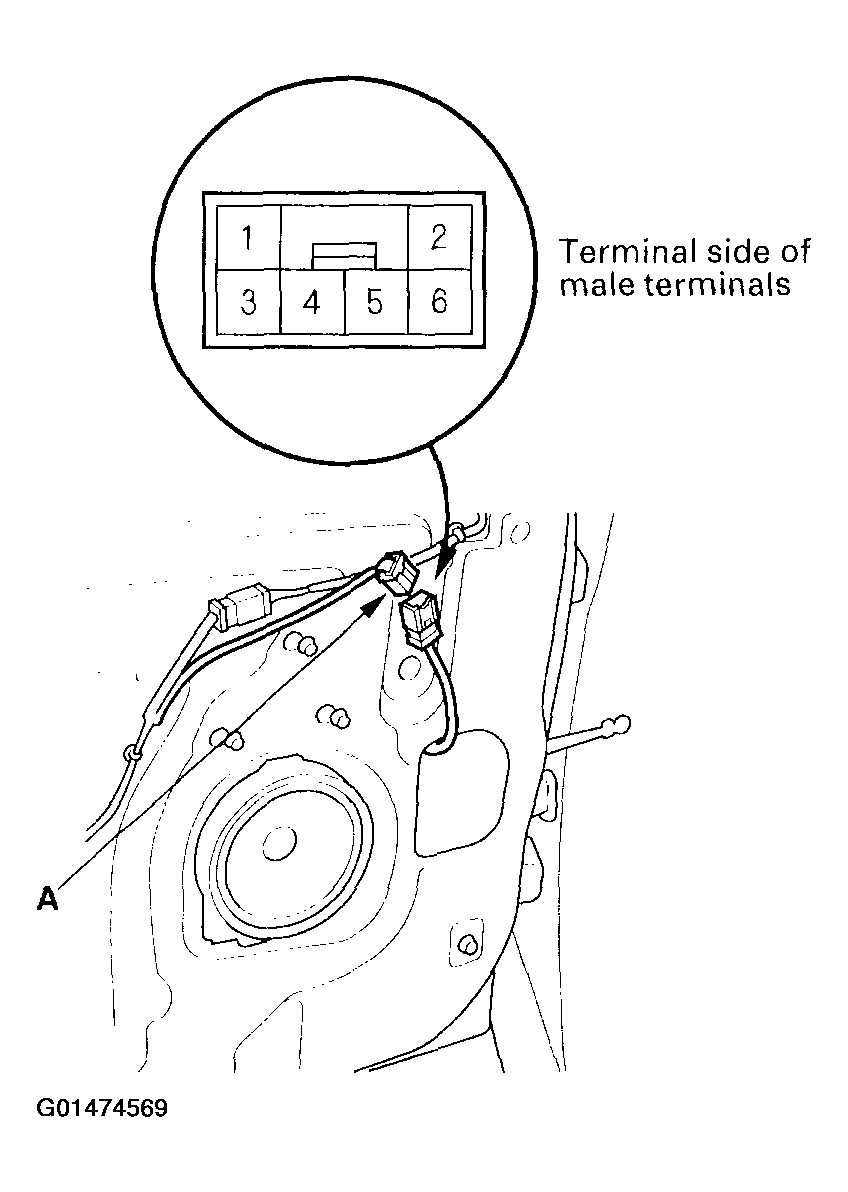

    Fig 1: Disconnecting 6-Pin Connector From Driver's Window Motor
    G01474569Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Test the motor in each direction by connecting battery power and ground according to the table.
    NOTE: To prevent damage to the motor, disconnect one lead as soon as the motor stops running.
    Fig 2: Testing Motor
    G01474570Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. If the motor does not run or fails to run smoothly, replace it.
