Rear Heater-A/C Control Unit Connector End View

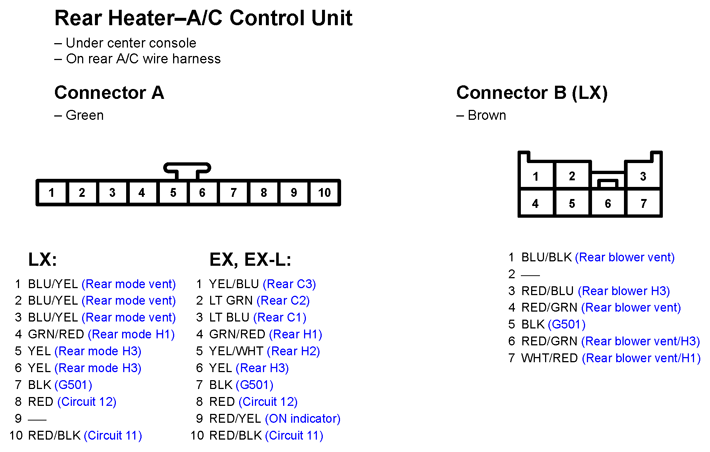

Fig 1: Rear Heater-A/C Control Unit Connector End View

G11251280

Courtesy of AMERICAN HONDA MOTOR CO., INC.
