ATF Cooler Hose Installation

Slide the ATF cooler hoses (A) over the ATF cooler lines (B), then secure the hoses with the clips (C) at 6-8 mm (0.2-0.3 in.) (D) from the hose ends.

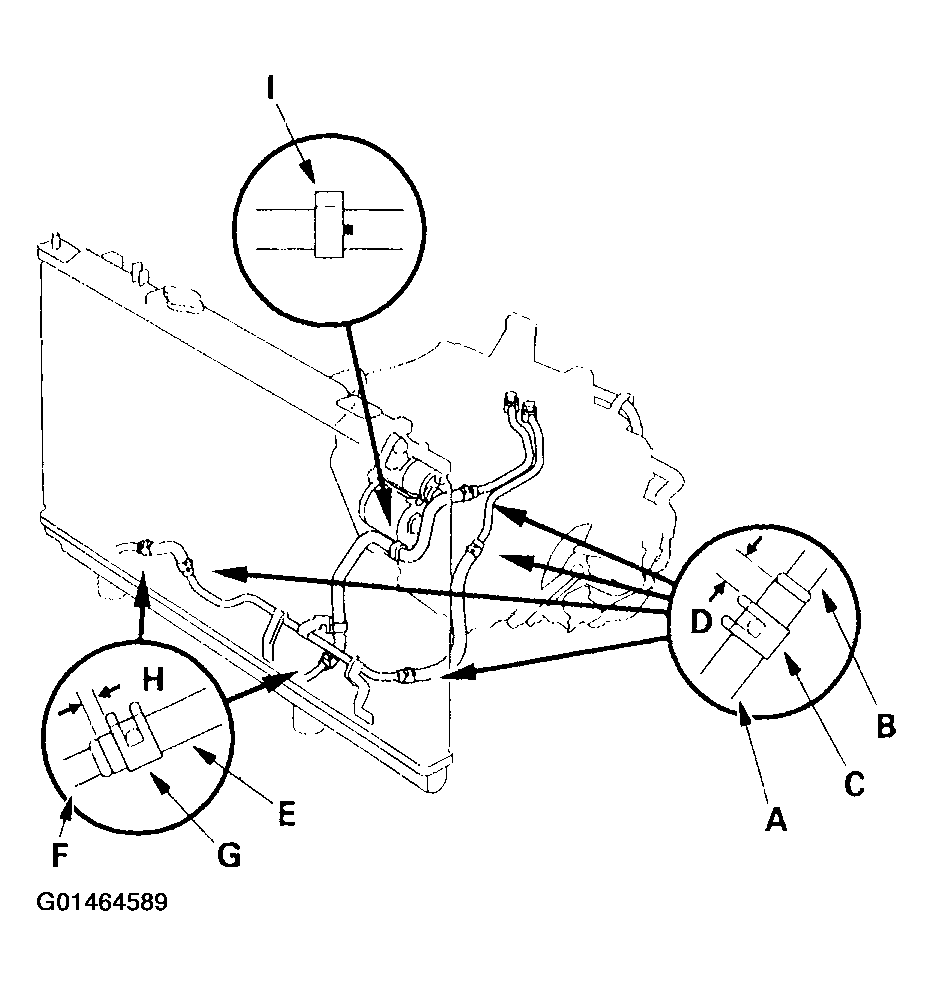

Fig 1: Sliding The ATF Cooler Hoses Over The ATF Cooler Lines
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Side the ATF cooler hoses (E) over the ATF cooler lines (F) at the ATF cooler, then secure the hoses with the clips (G) at 2-4 mm (0.1-0.2 in.) (H) from the hose ends.
Clamp the ATF cooler hose with the clamp (I) on the starter by aligning the white dot on the hose with the clamp.
