Power Mirror, Right Connector End View

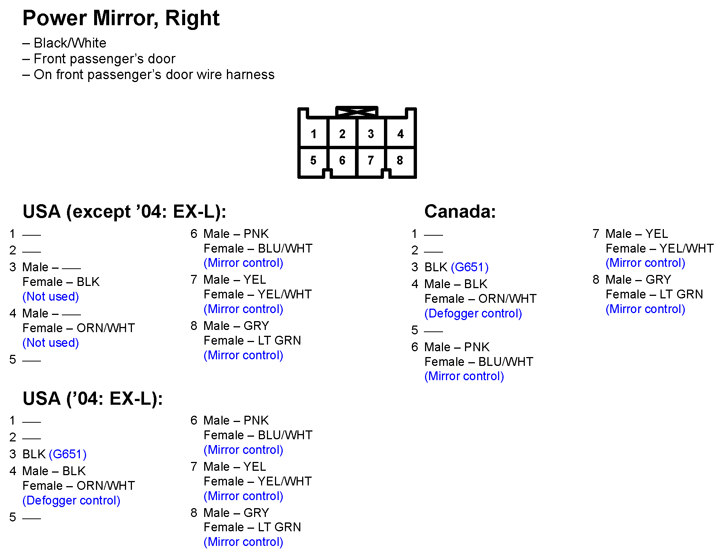

Fig 1: Power Mirror, Right Connector End View

G11251218

Courtesy of AMERICAN HONDA MOTOR CO., INC.
