Blower Motor, Front Connector End View

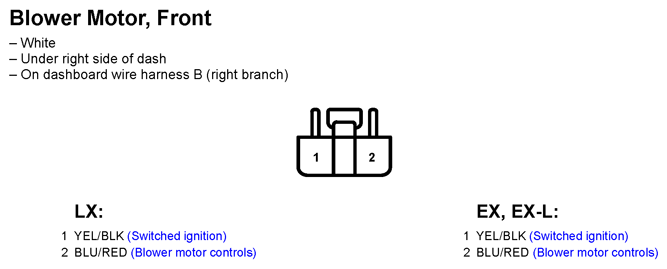

Fig 1: Blower Motor, Front Connector End View

G11251011

Courtesy of AMERICAN HONDA MOTOR CO., INC.
