Blower Unit Removal & Installation

SRS components are located in this area. Review the SRS components locations, precautions and procedures before performing repairs or service. For 2003 models, see AIR BAG RESTRAINT SYSTEMS . For 2004 models, see AIR BAG RESTRAINT SYSTEMS .

1. Make sure you have the anti-theft code for the radio and the navigation system, then write down the frequencies for the radio's preset buttons.
2. Disconnect the negative cable from the battery.
3. Remove the dashboard (see DASHBOARD REMOVAL/INSTALLATION ).
4. Remove the evaporator (see EVAPORATOR REMOVAL & INSTALLATION  ).

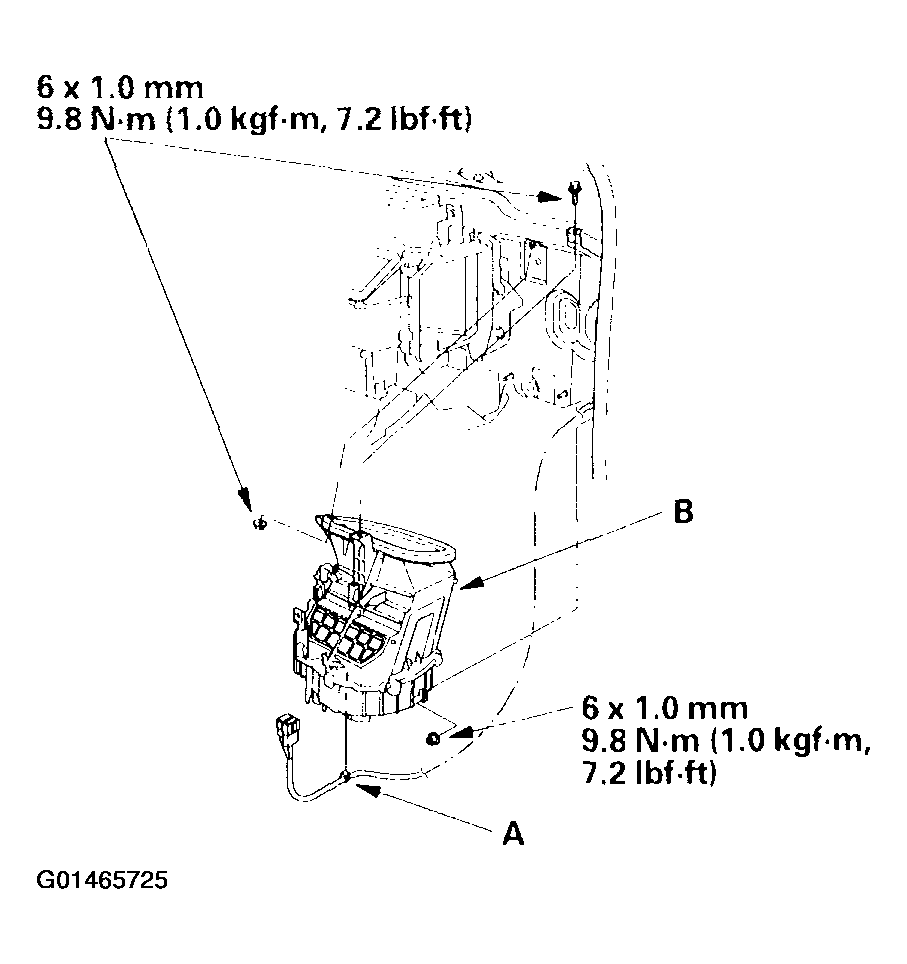

5. Remove the wire harness clip (A). Remove the mounting nuts, the mounting bolt, and the blower unit (B).
   Fig 1: Removing The Blower Unit

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
6. Install the unit in the reverse order of removal, and note these items:
   • For evaporator and A/C-related information, refer to evaporator removal and installation (see EVAPORATOR REMOVAL & INSTALLATION  ).
   • Do the PCM idle learn procedure (see PCM IDLE LEARN PROCEDURE ).
   • Do the power window control unit resetting procedure (see RESETTING THE POWER WINDOW CONTROL UNIT ).
   • Enter the anti-theft code for the radio and the navigation system, then enter the customer's radio station presets.
