Component Locations
Component Locations
For component locations, see
Fig 1
.

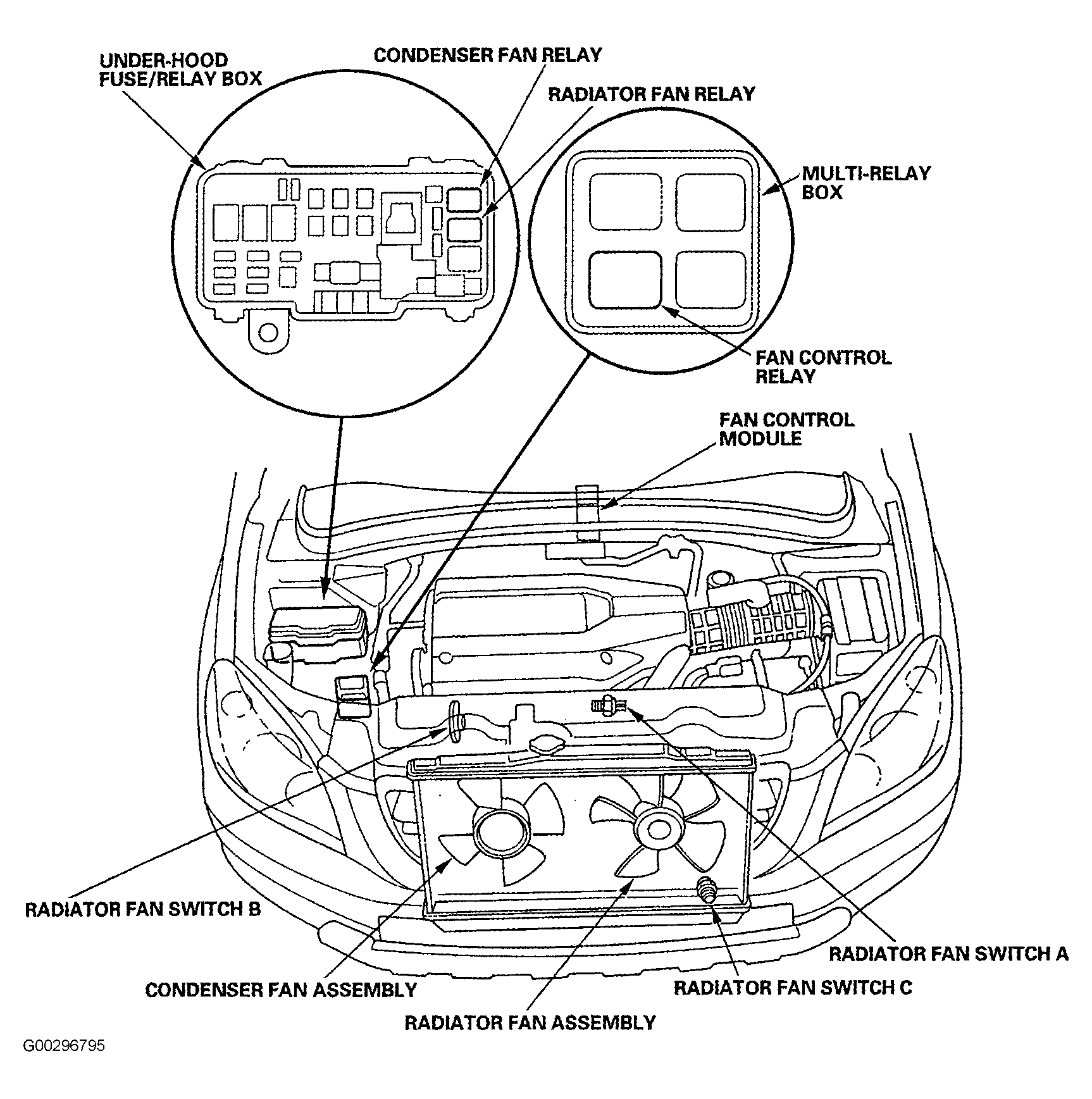

Fig 1: Locating Cooling Fan Components
Courtesy of AMERICAN HONDA MOTOR CO., INC.
