XM Receiver (Honda Accessory) Connector End View

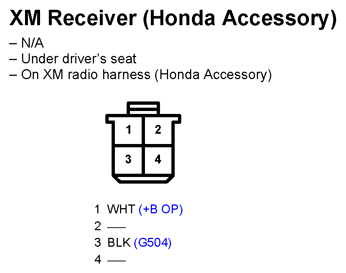

Fig 1: XM Receiver (Honda Accessory) Connector End View

G11251302

Courtesy of AMERICAN HONDA MOTOR CO., INC.
