Window Wiper Motor, Rear Connector End View

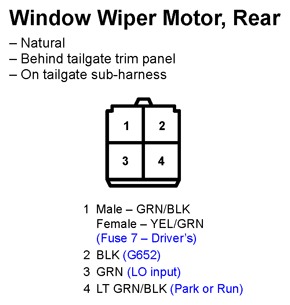

Fig 1: Window Wiper Motor, Rear Connector End View

G11251167

Courtesy of AMERICAN HONDA MOTOR CO., INC.
