Window Washer Motor, Rear Connector End View

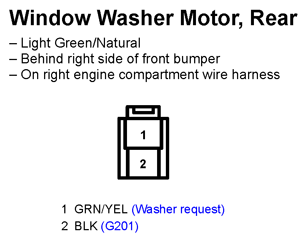

Fig 1: Window Washer Motor, Rear Connector End View

G11251099

Courtesy of AMERICAN HONDA MOTOR CO., INC.
