Vanity Mirror Light, Driver's Connector End View

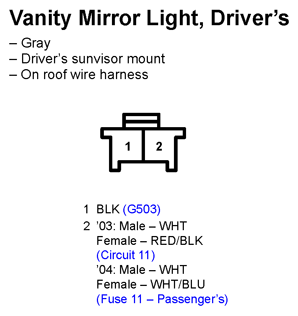

Fig 1: Vanity Mirror Light, Driver's Connector End View

G11251091

Courtesy of AMERICAN HONDA MOTOR CO., INC.
