Rearview Camera Control Unit (EX-L: Honda Accessory) Connector End View
Rearview Camera Control Unit (EX-L: Honda Accessory) Connector End View

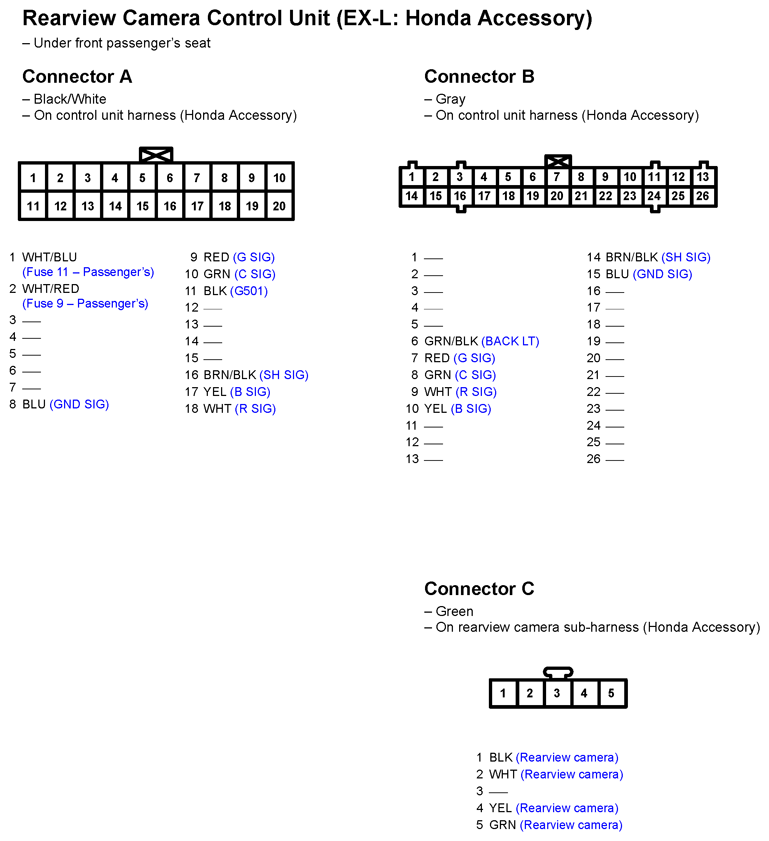

Fig 1: Rearview Camera Control Unit (EX-L: Honda Accessory) Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.
