Output Shaft (Countershaft) Speed Sensor Connector End View

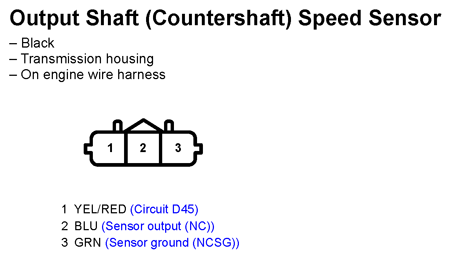

Fig 1: Output Shaft (Countershaft) Speed Sensor Connector End View

G11251111

Courtesy of AMERICAN HONDA MOTOR CO., INC.
