Keyless Receiver Unit (LX: Honda Accessory) Connector End View

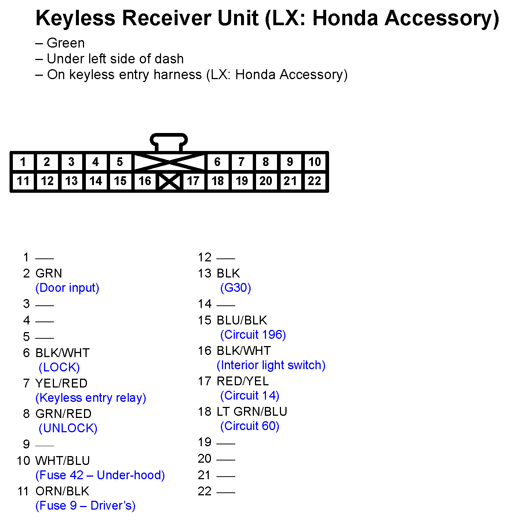

Fig 1: Keyless Receiver Unit (LX: Honda Accessory) Connector End View

G11251315

Courtesy of AMERICAN HONDA MOTOR CO., INC.
