Hands-Free Telephone Control Unit (Honda Accessory) Connector End View

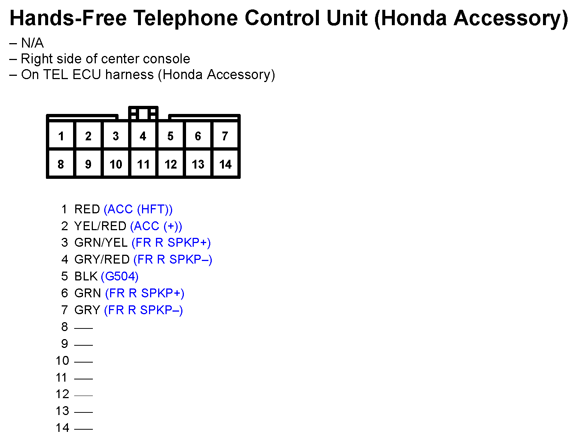

Fig 1: Hands-Free Telephone Control Unit (Honda Accessory) Connector End View

G11251305

Courtesy of AMERICAN HONDA MOTOR CO., INC.
