CMP Sensor (A and B) Connector End View

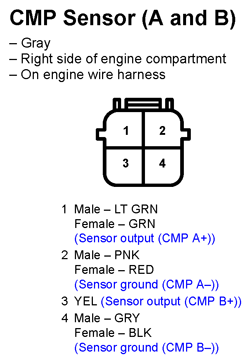

Fig 1: CMP Sensor (A and B) Connector End View

G11251155

Courtesy of AMERICAN HONDA MOTOR CO., INC.
