C327 (Keyless Entry Connector) Connector End View

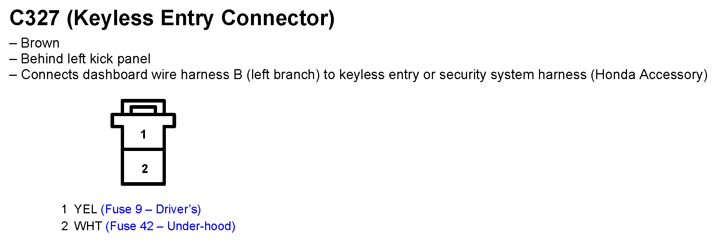

Fig 1: C327 (Keyless Entry Connector) Connector End View

G11251103

Courtesy of AMERICAN HONDA MOTOR CO., INC.
