C105 (Junction Connector) Connector End View

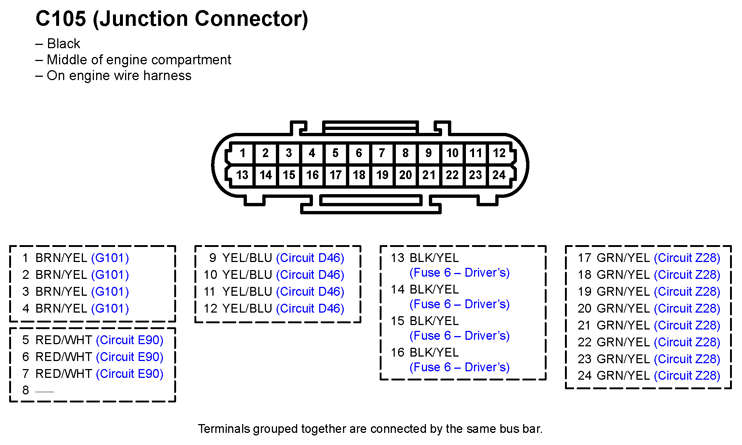

Fig 1: C105 (Junction Connector) Connector End View

G11251249

Courtesy of AMERICAN HONDA MOTOR CO., INC.
