3rd Clutch Transmission Fluid Pressure Switch Connector End View

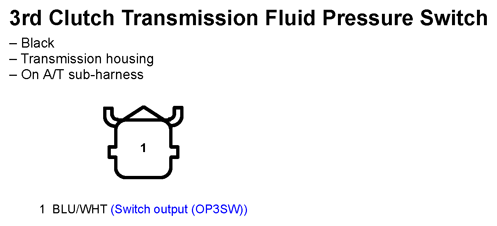

Fig 1: 3rd Clutch Transmission Fluid Pressure Switch Connector End View

G11250971

Courtesy of AMERICAN HONDA MOTOR CO., INC.
