Front Door Upper Seal Replacement
NOTE:
- Take care not to scratch the door.
- Use a clip remover to remove the clips.
- Remove these items:
- Power mirror (see POWER MIRROR REPLACEMENT )
- Door sash trim (see FRONT DOOR SASH TRIM REPLACEMENT )

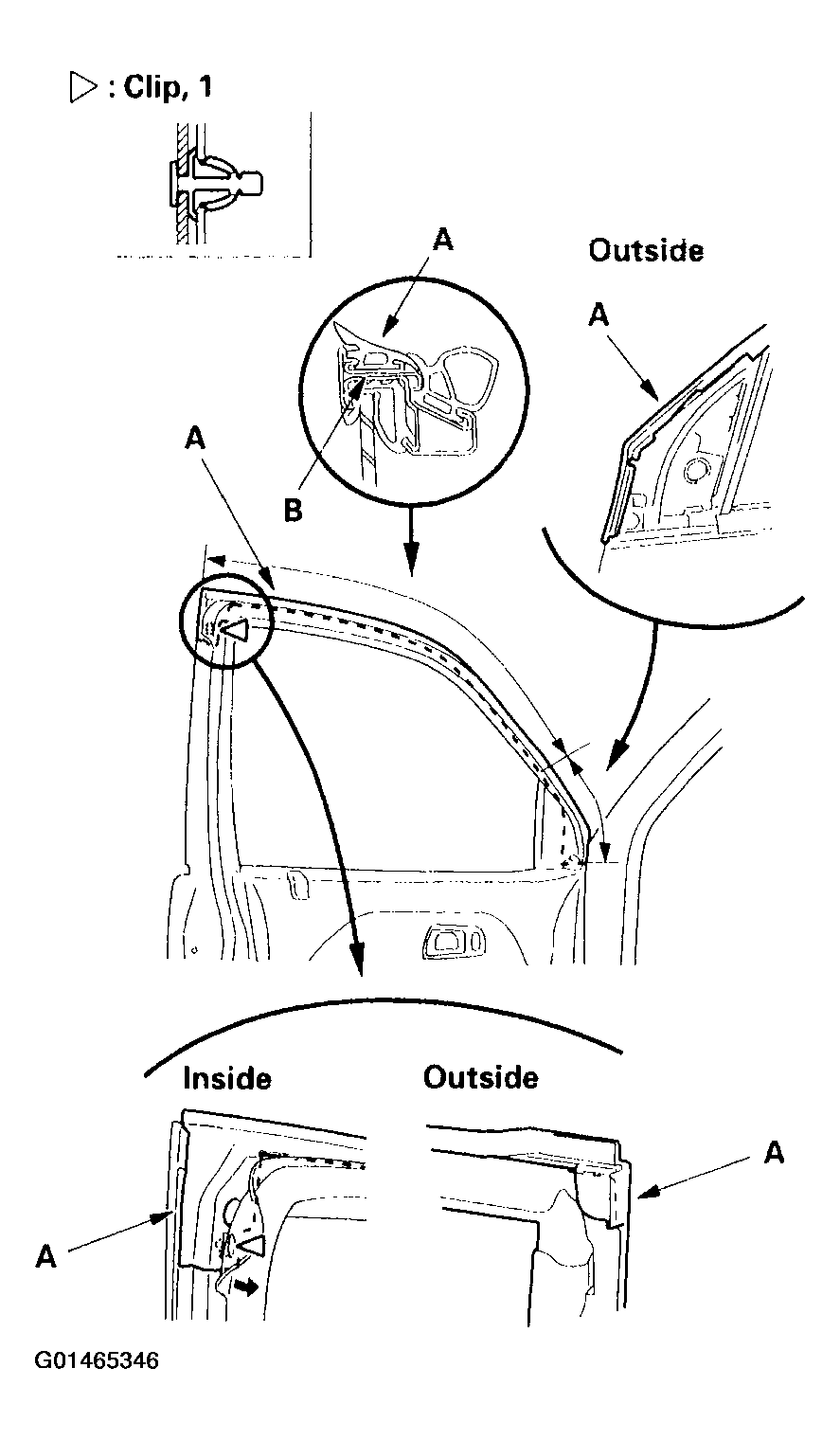

- Detach the door weatherstrip clip, then remove the door upper seal (A).
- Install the upper seal in the reverse order of removal, and note these items:
- Replace the clip if it's damaged.
- Push the clip into place securely.
- Make sure the upper seal is installed in the holder (B) securely.
