Component Location Index - Rear Door

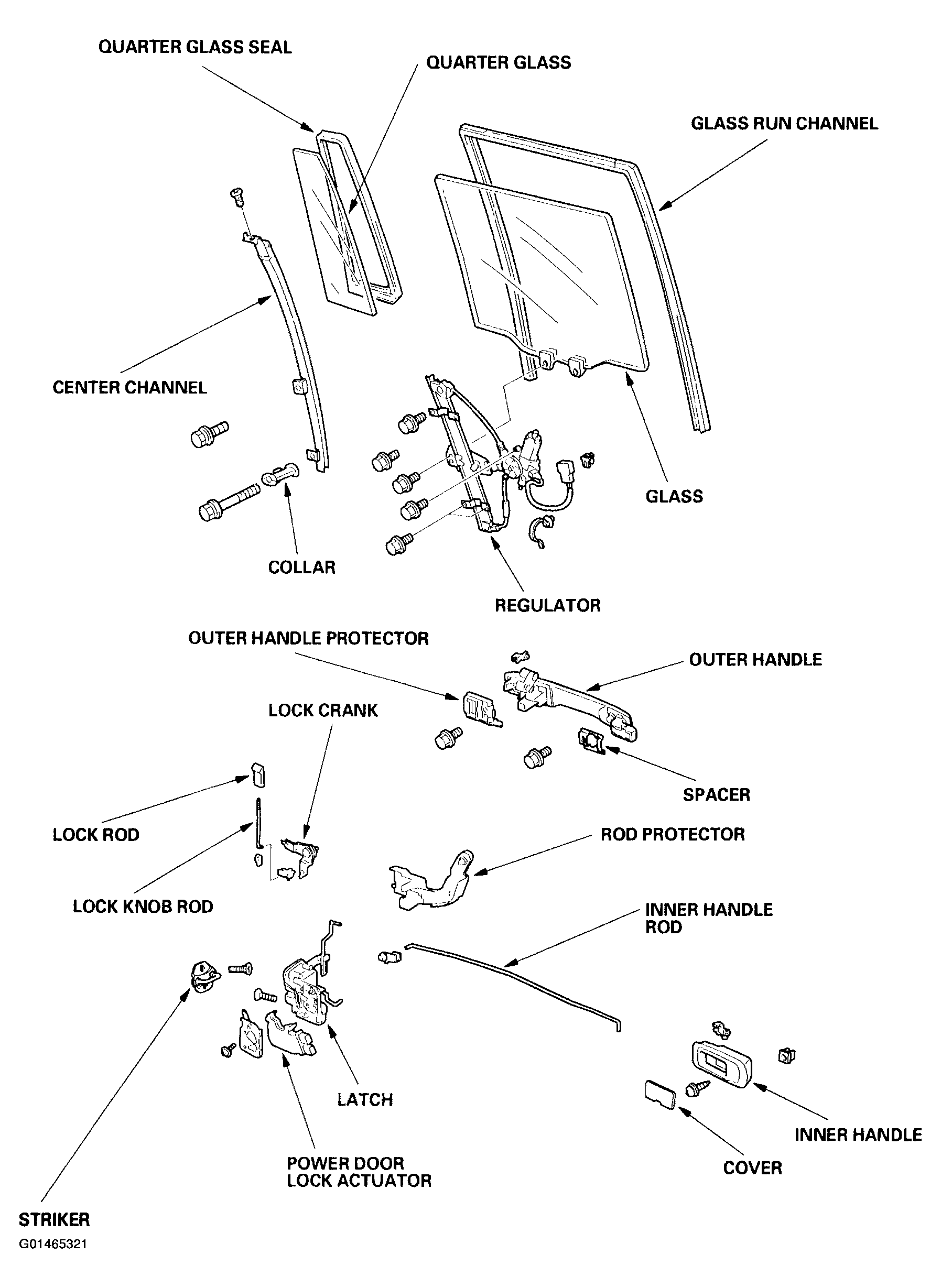

Fig 1: Locating Rear Door Components (1 Of 2)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

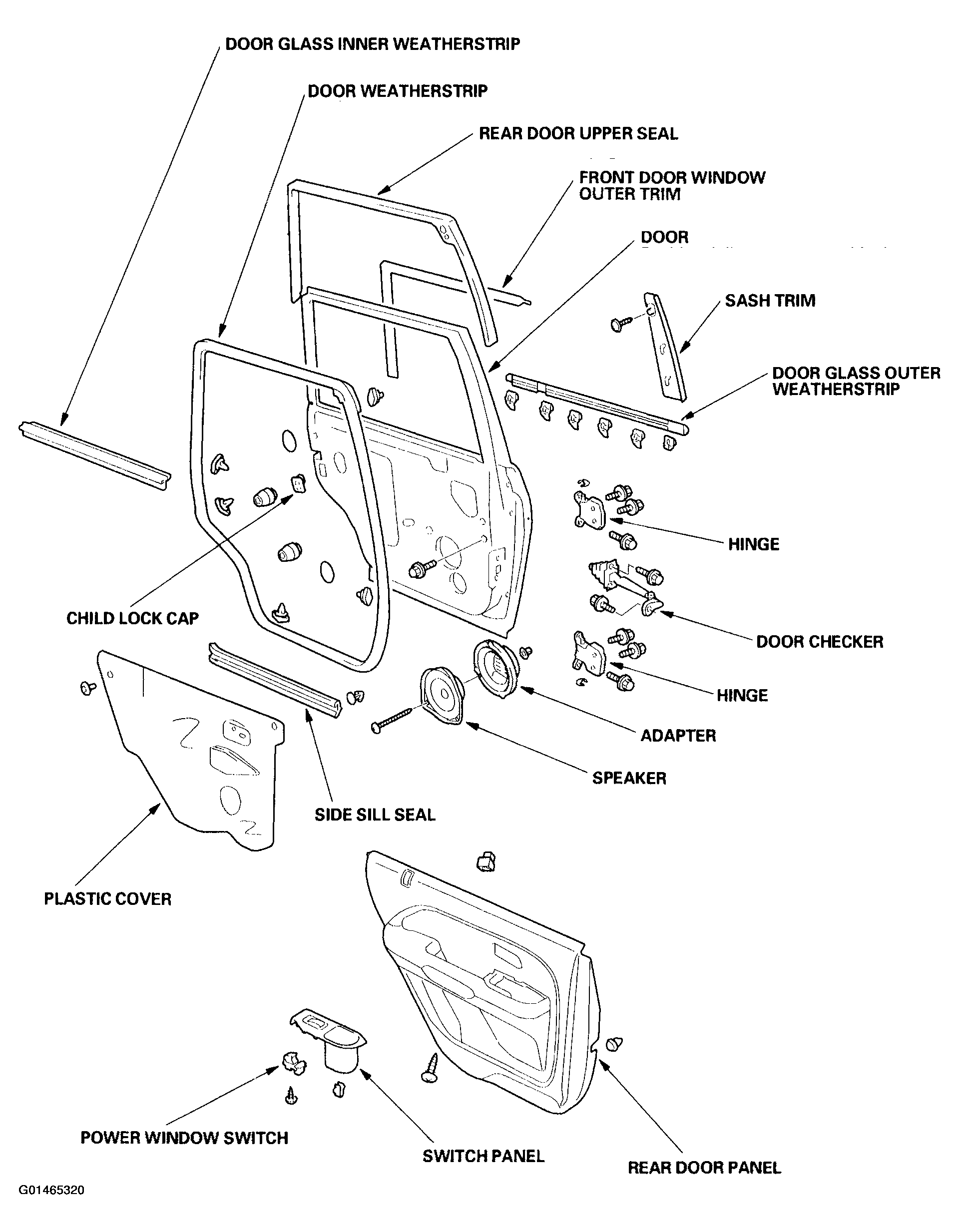

Fig 2: Locating Rear Door Components (2 Of 2)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
