Honda
>>
2003
>>
Pilot EX
>>
Repair and Diagnosis
>>
Body & Frame
>>
Power Mirrors
>>
Circuit Diagram
Circuit Diagram

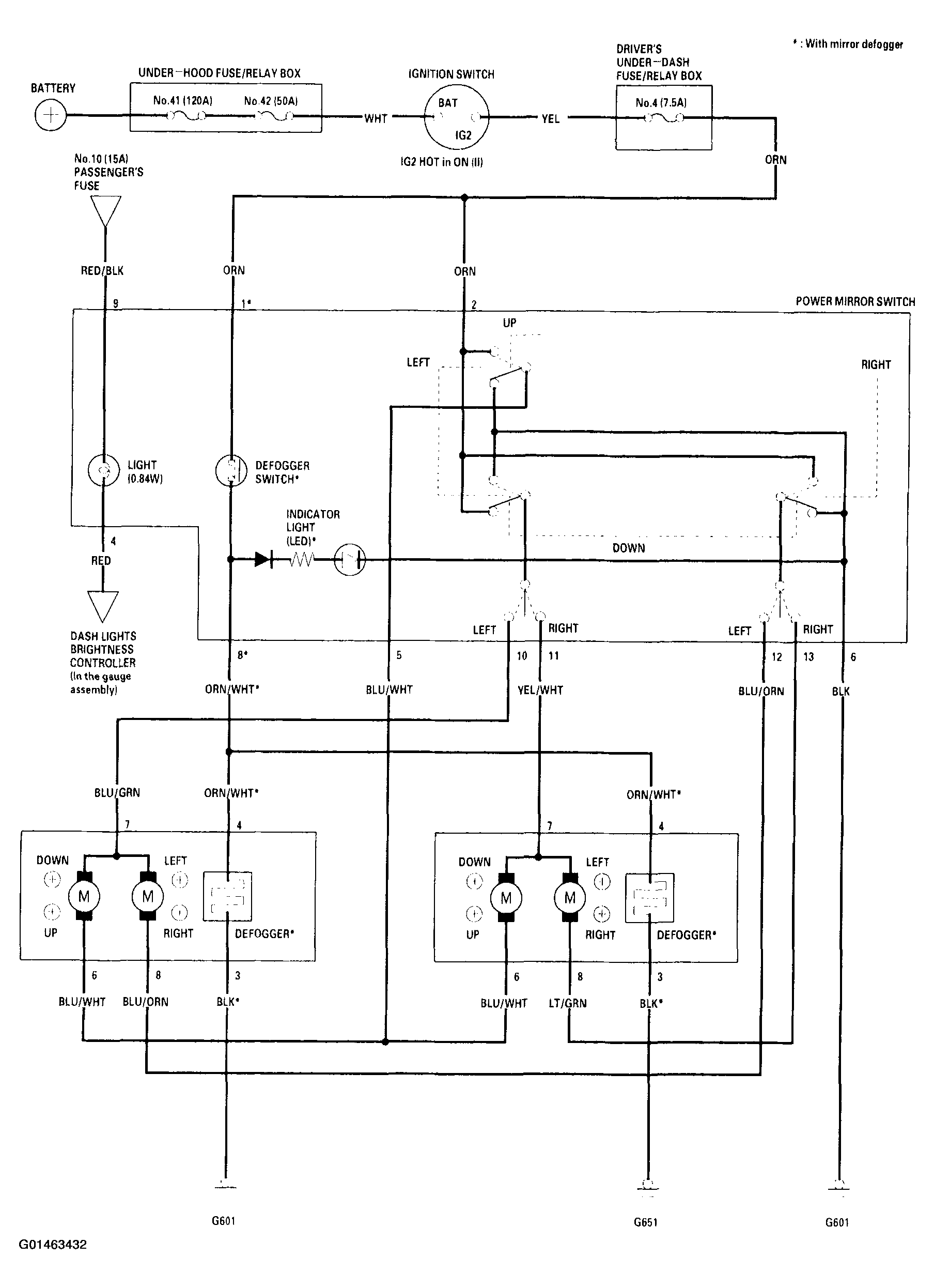

Fig 1: Power Mirror System Circuit Diagram
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
