Driver's Switch Panel Removal/Installation

NOTE:
  • When prying with a flat-tip screwdriver, wrap it with protective tape, and apply protective tape around the related parts to prevent damage.
  • Take care not to scratch the dashboard and related parts.
  1. Remove the driver's switch panel (A).
    1. Using a flat-tip screwdriver, pry out the bottom portion of the panel to detach the clips.
    2. Pull out the panel to release the upper hooks (B), then remove the panel.
    3. Disconnect the cruise control main switch connector (C) and interior lights switch connector (D).

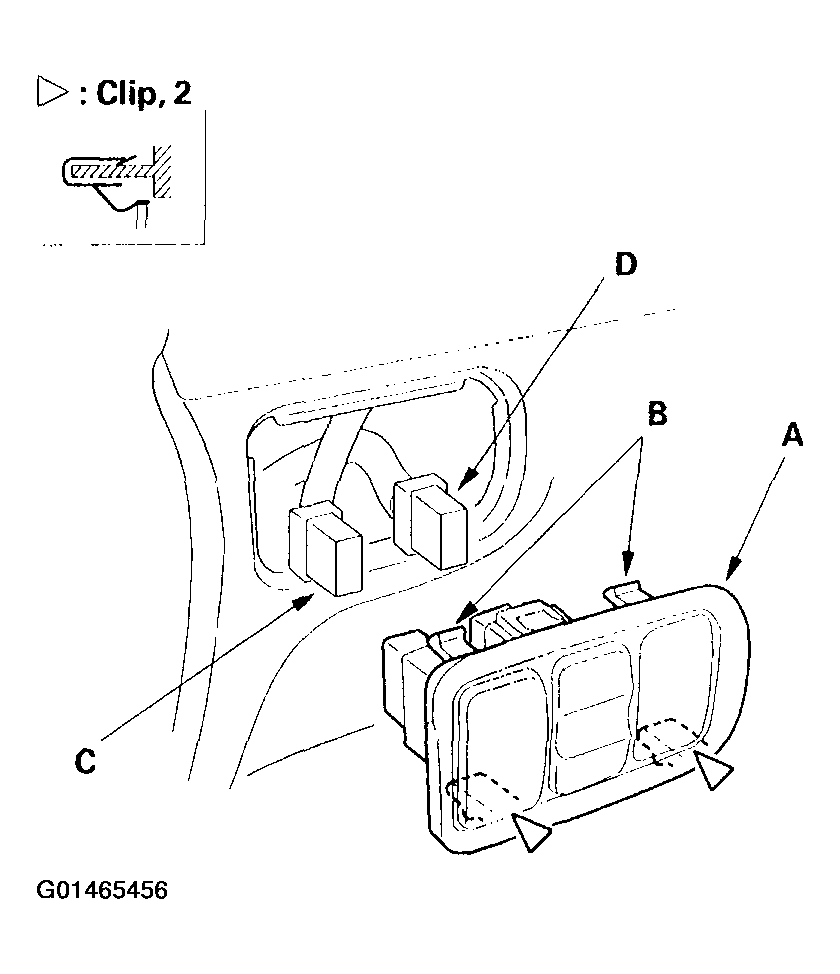

    Fig 1: Identifying Driver's Switch Panel Fastener Locations
    G01465456Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Install the panel in the reverse order of removal, and note these items:
    • Make sure each connector is plugged in properly.
    • Replace any damaged clips.
    • Push the clips and hooks into place securely.
