Pilot EX
>>
Repair and Diagnosis
>>
Body & Frame
>>
Door Locks
>>
Immobilizer System
>>
Circuit Diagram
Circuit Diagram

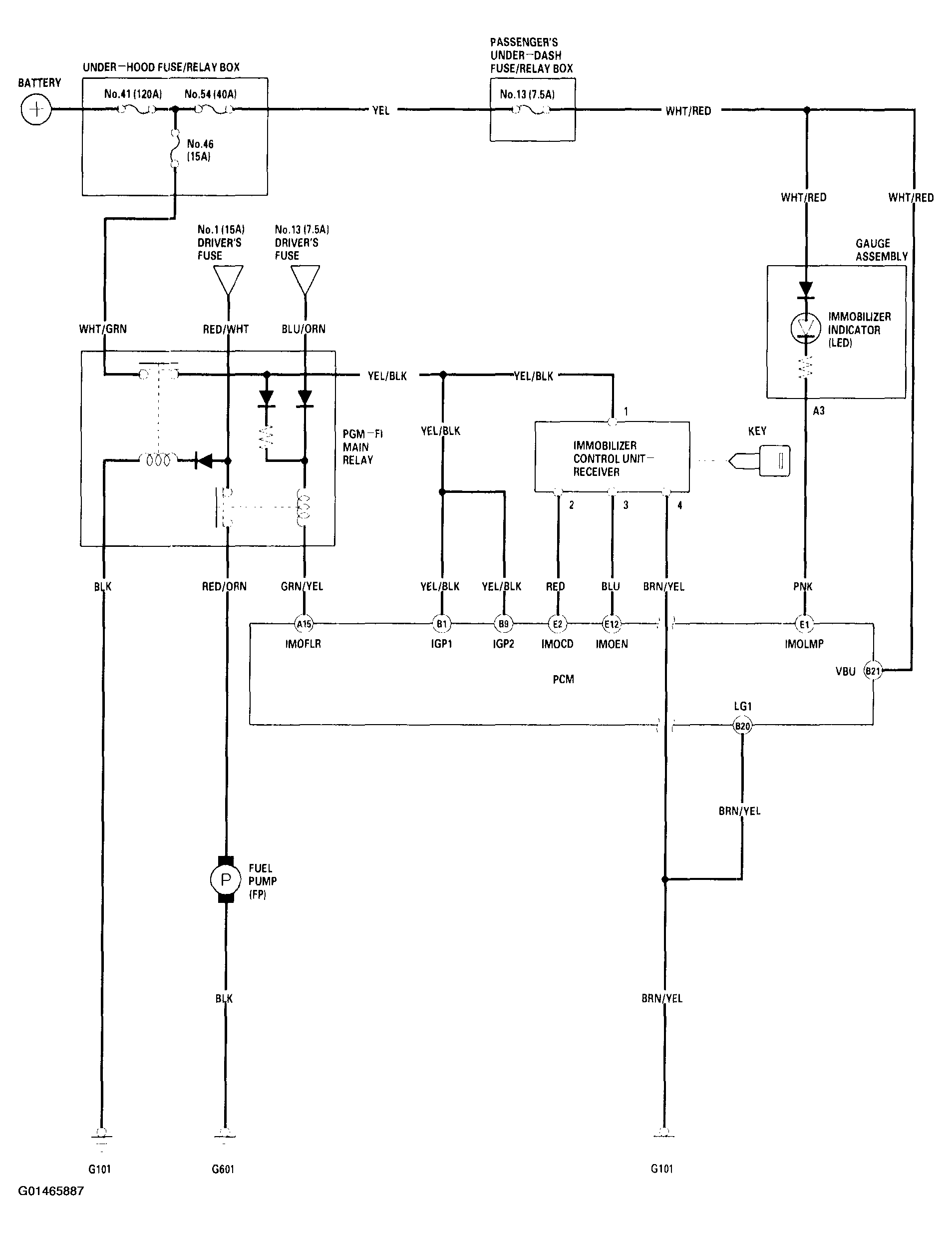

Fig 1: Immobilizer System Circuit Diagram
Courtesy of AMERICAN HONDA MOTOR CO., INC.
