Washer Motor Test Replacement

  1. Remove the right inner fender .
  2. Disconnect the 2P connectors (A) from the washer motors (B).

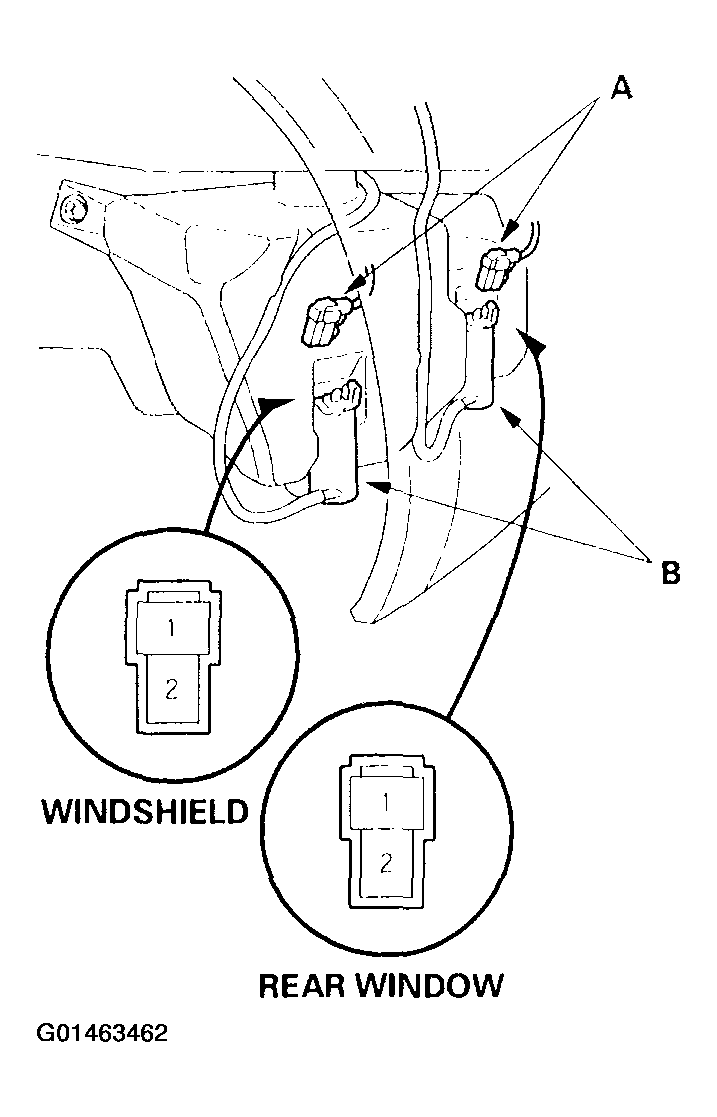

    Fig 1: Identifying Washer Motors 2P Connectors Terminals
    G01463462Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Test the washer motor by connecting battery power to the No. 1 terminal and ground to the No. 2 terminal.
  4. If the motor does not run or fails to run smoothly, replace it.
