Recirculation Control Motor Connector End View

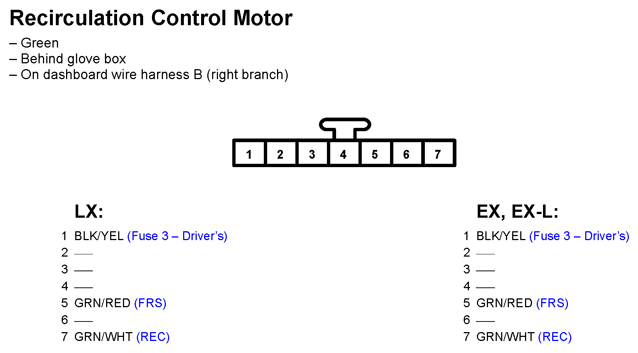

Fig 1: Recirculation Control Motor Connector End View

G11251215

Courtesy of AMERICAN HONDA MOTOR CO., INC.
