Power Window Control Unit Connector End View

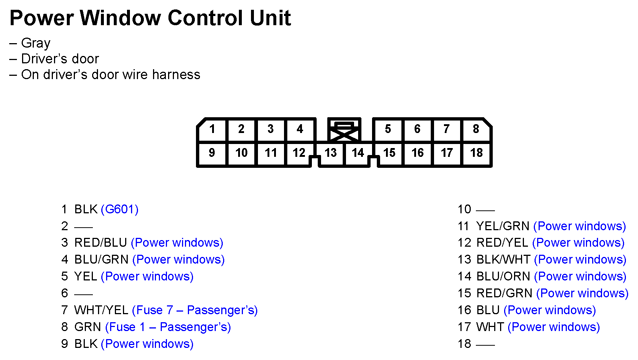

Fig 1: Power Window Control Unit Connector End View

G11251243

Courtesy of AMERICAN HONDA MOTOR CO., INC.
