Navigation Display Unit (EX-L) Connector End View

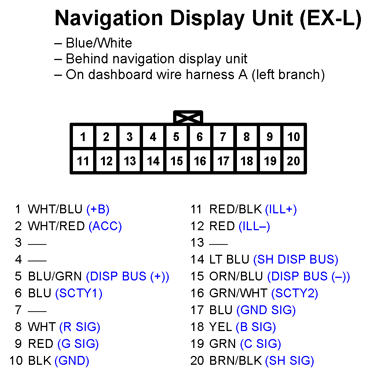

Fig 1: Navigation Display Unit (EX-L) Connector End View

G11251244

Courtesy of AMERICAN HONDA MOTOR CO., INC.
