Multiplex Control Unit, Driver's Connector End View

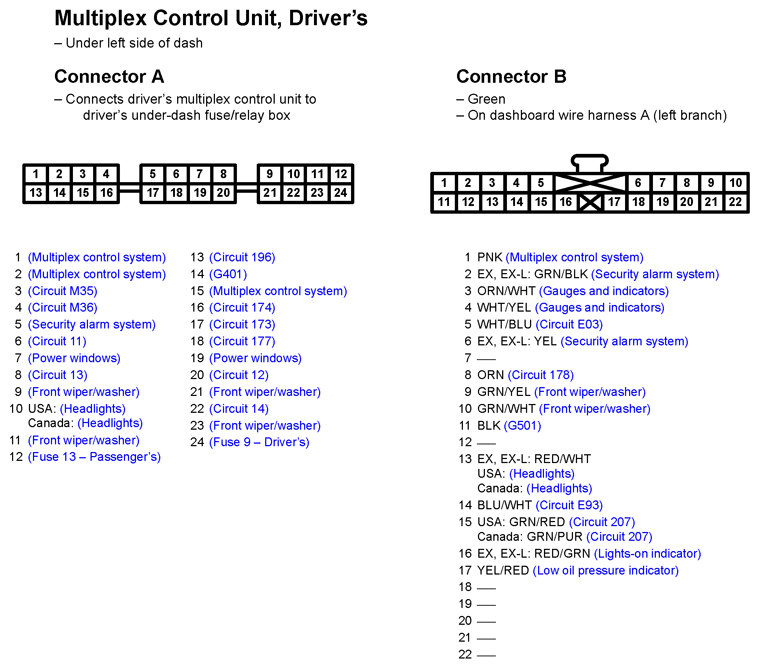

Fig 1: Multiplex Control Unit, Driver's Connector End View

G11251273

Courtesy of AMERICAN HONDA MOTOR CO., INC.
