Mode Control Motor, Front Connector End View

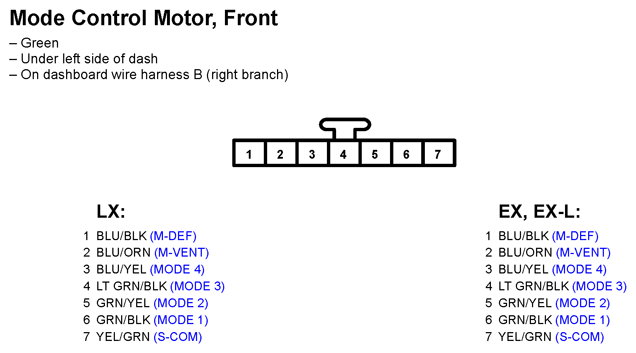

Fig 1: Mode Control Motor, Front Connector End View

G11251211

Courtesy of AMERICAN HONDA MOTOR CO., INC.
