ABS Modulator-Control Unit Connector End View

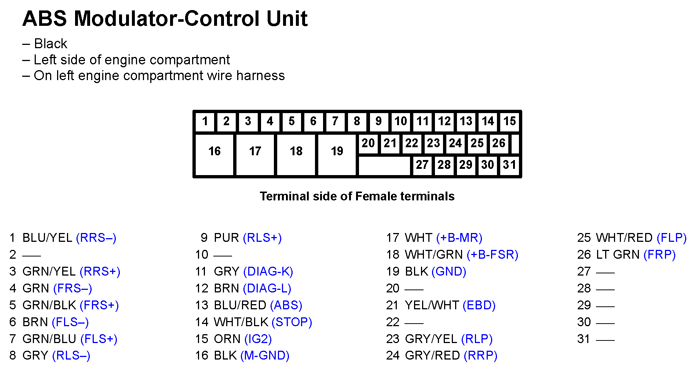

Fig 1: ABS Modulator-Control Unit Connector End View

G11251257

Courtesy of AMERICAN HONDA MOTOR CO., INC.
