PCM Inputs & Outputs At Connector C (31P)

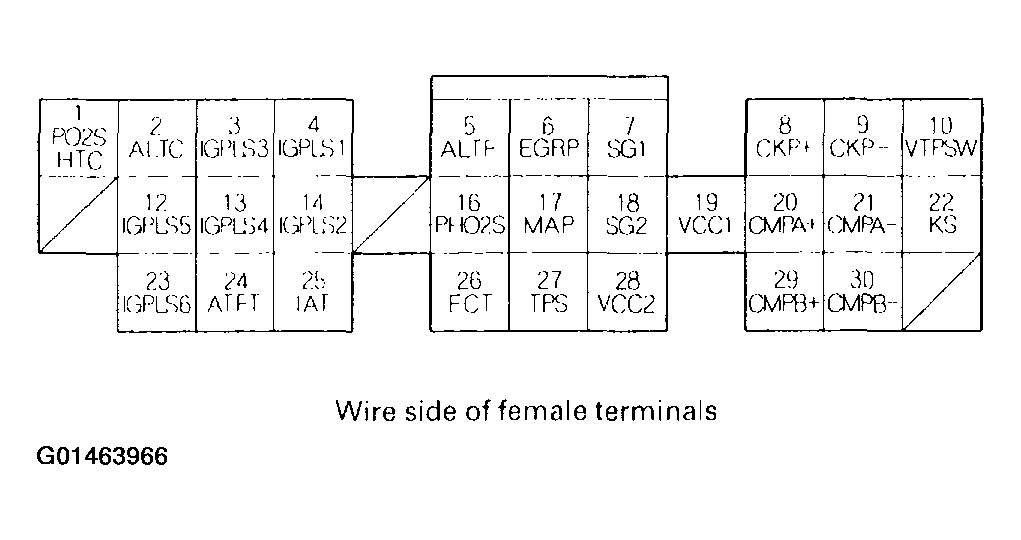

Fig 1: Identifying Connector C (31P) Terminals

Courtesy of AMERICAN HONDA MOTOR CO., INC.

NOTE: Standard battery voltage is 12 V.

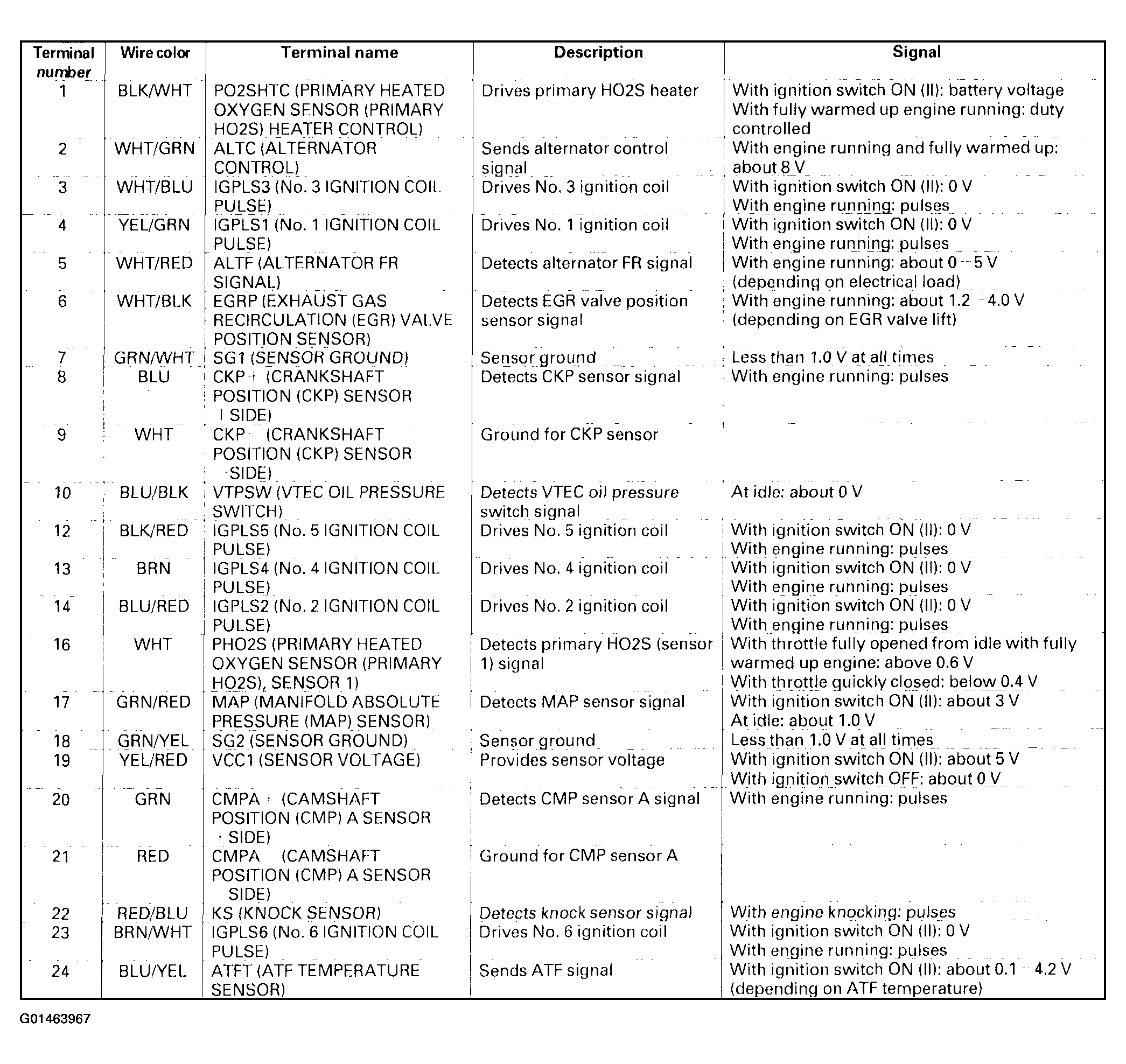

Fig 2: PCM Connector C (31P) Inputs & Outputs Pin Voltage Chart (1 Of 2)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

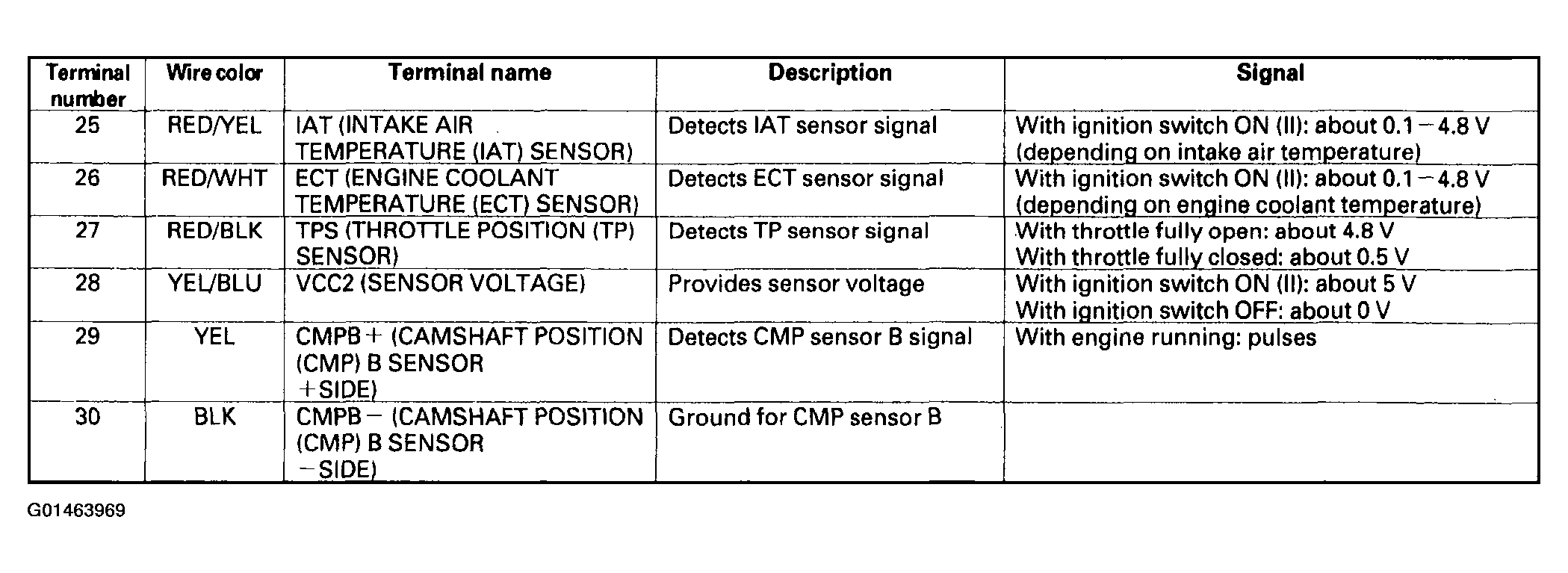

Fig 3: PCM Connector C (31P) Inputs & Outputs Pin Voltage Chart (2 Of 2)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
