PCM Inputs & Outputs At Connector B (25P)

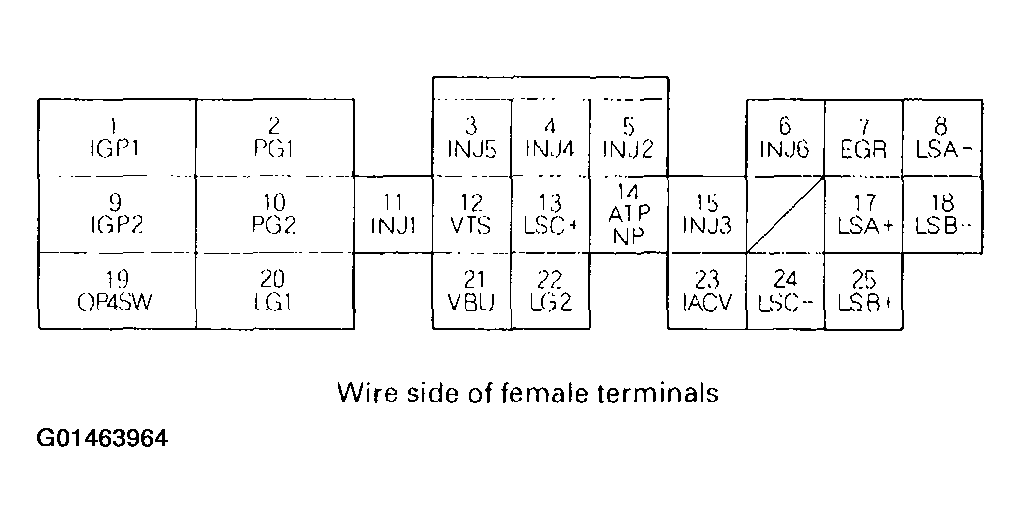

Fig 1: Identifying Connector B (25P) Terminals

Courtesy of AMERICAN HONDA MOTOR CO., INC.

NOTE: Standard battery voltage is 12 V.

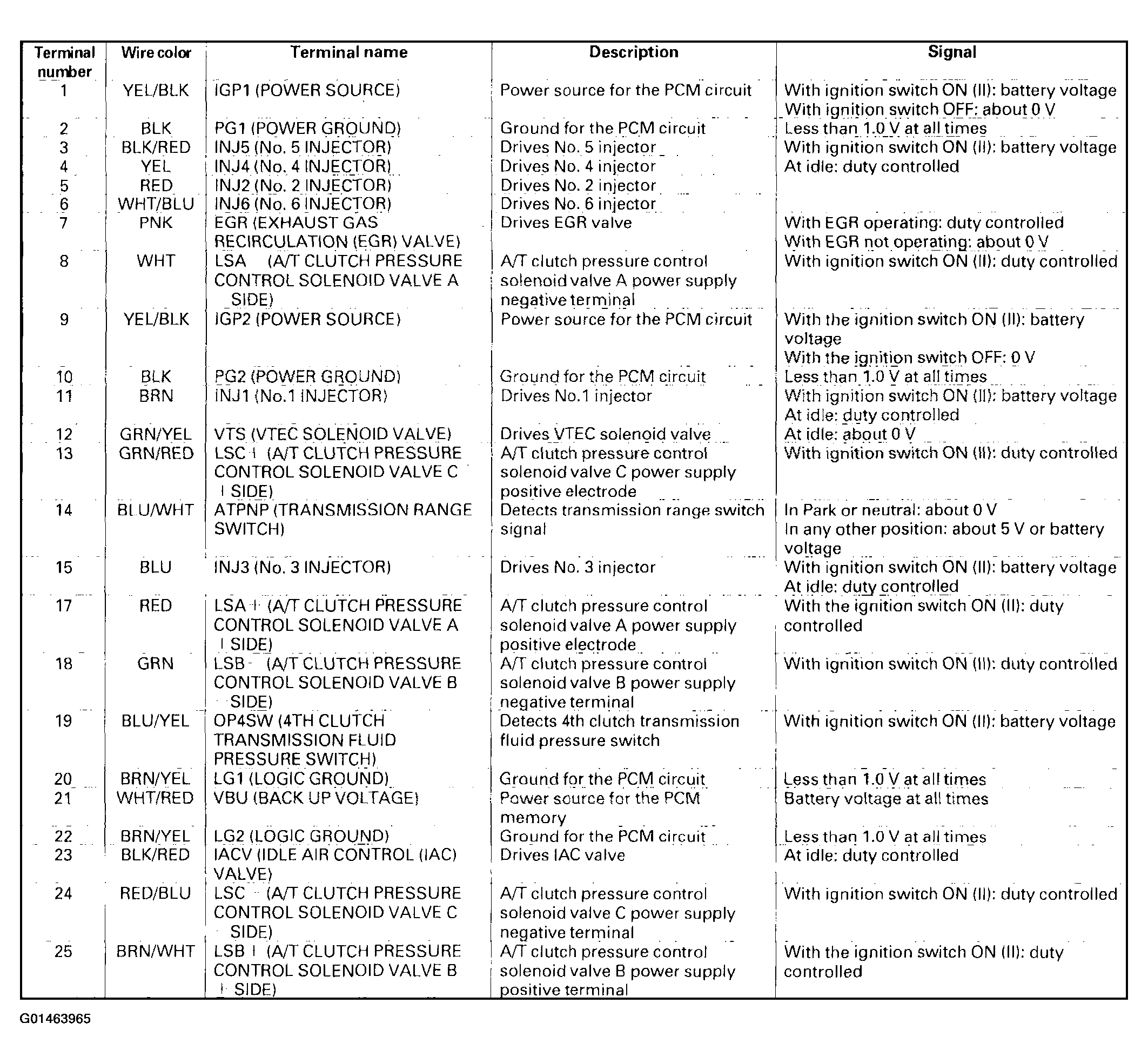

Fig 2: PCM Connector B (25P) Inputs & Outputs Pin Voltage Chart

Courtesy of AMERICAN HONDA MOTOR CO., INC.
