Rear Window

1. Before testing the wiper/washer control functions, troubleshoot the multiplex control system (see TROUBLESHOOTING ).

Passenger's Multiplex Control Unit

1. Remove the passenger's multiplex control unit from the passenger's under-dash fuse/relay box, and disconnect its connector.
2. Inspect all connector and socket terminals to be sure they are all making good contact.
   • If the terminals are bent, loose or corroded, repair them as necessary, and recheck the system.
   • If the terminals look OK, go to step 4.

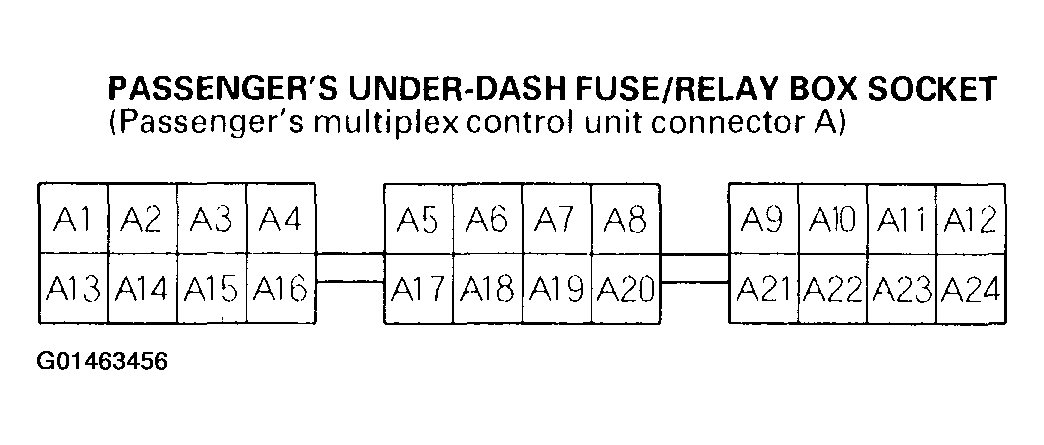

   Fig 1: Identifying The Passenger's Multiplex Control Unit 24P Connector A Terminals

   Courtesy of AMERICAN HONDA MOTOR CO., INC.

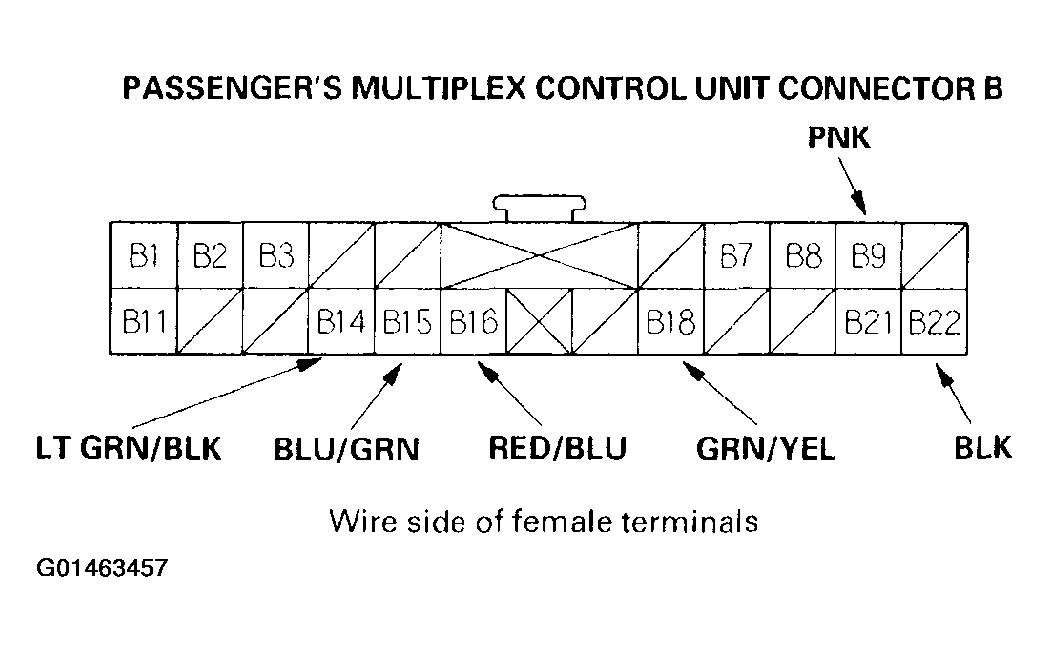

   Fig 2: Identifying The Passenger's Under-Dash Fuse/Relay Box 22P Connector B Terminals

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
3. With the passenger's multiplex control unit still disconnected, make these input tests at the connector and passenger's under-dash fuse/relay box sockets.
   • If any test indicates a problem, find and correct the cause, then recheck the system.
   • If all the input tests prove OK, the control unit must be faulty; replace the control unit.

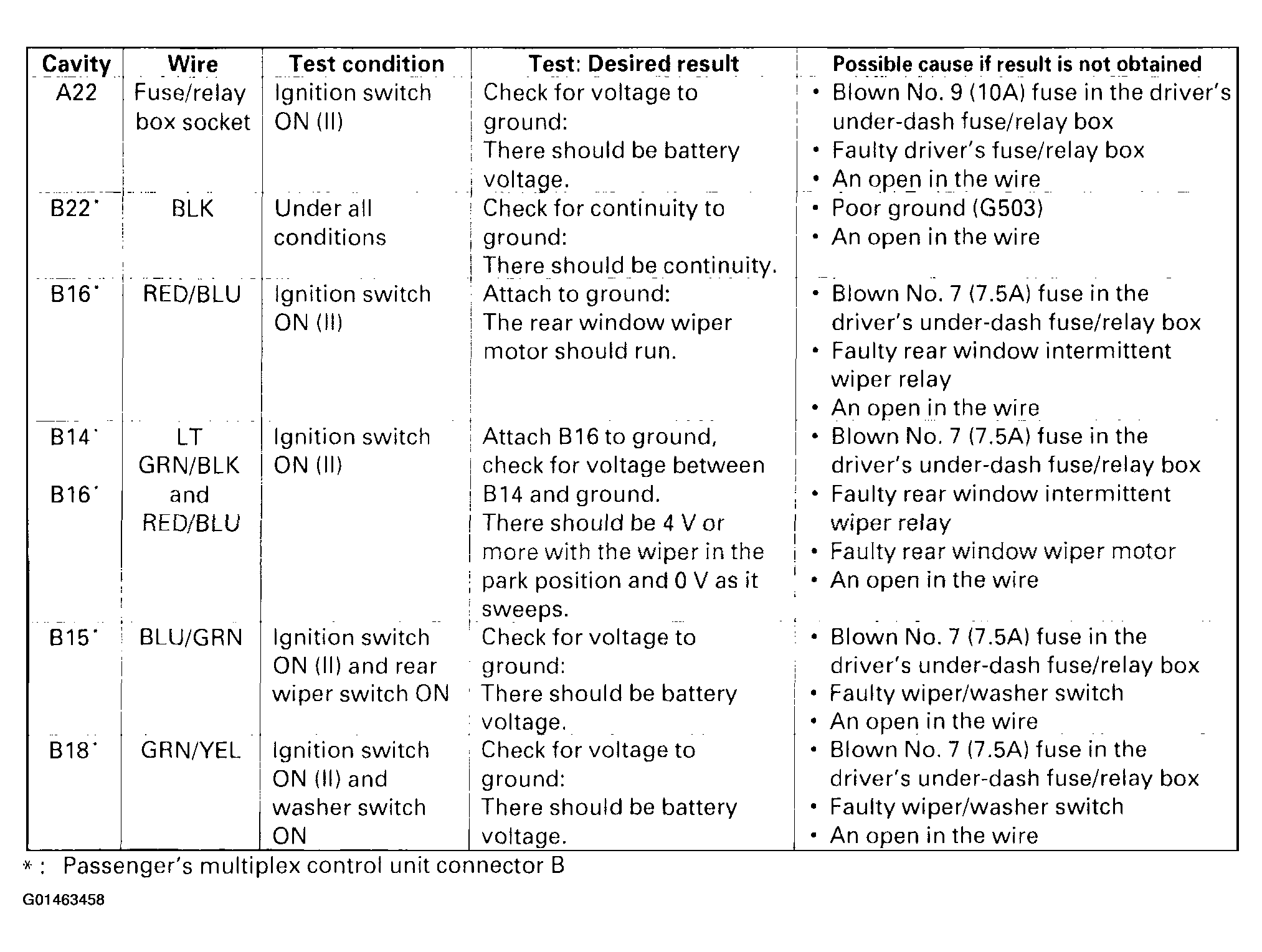

   Fig 3: Control Unit Input Test Table (Rear Window)

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
