Component Location Index (Entry Light Control System)

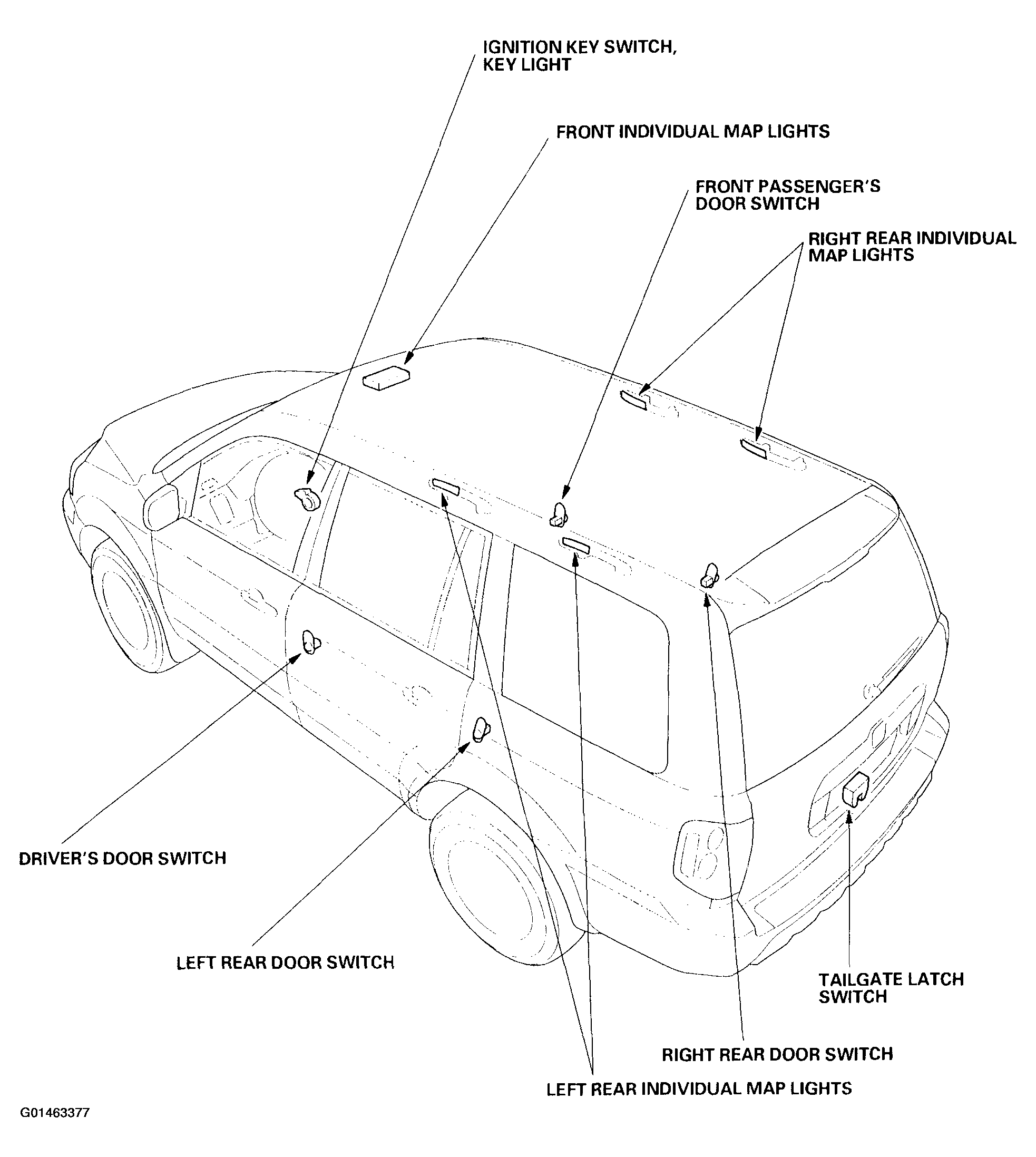

Fig 1: Locating Entry Light Control System Components

G01463377

Courtesy of AMERICAN HONDA MOTOR CO., INC.
